Klein Parallel Jaw Grip 4502 Series with Hot Latch (KT4502)

Price:

$ 203.97

Klein Parallel Jaw Grip 4502 Series with Hot Latch (KT4502)
  2. Shop
  3. Klein Parallel Jaw Grip 4502 Series with Hot Latch (KT4502)
Klein Parallel Jaw Grip 4501 Series with Hot Latch (KT4501)
Klein Parallel Jaw Grip 4501 Series with Hot Latch (KT4501)
$ 203.97
$ 203.97
Klein Parallel Jaw Grip 4600 Series (KT4600)
Klein Parallel Jaw Grip 4600 Series (KT4600)
$ 307.74
$ 307.74

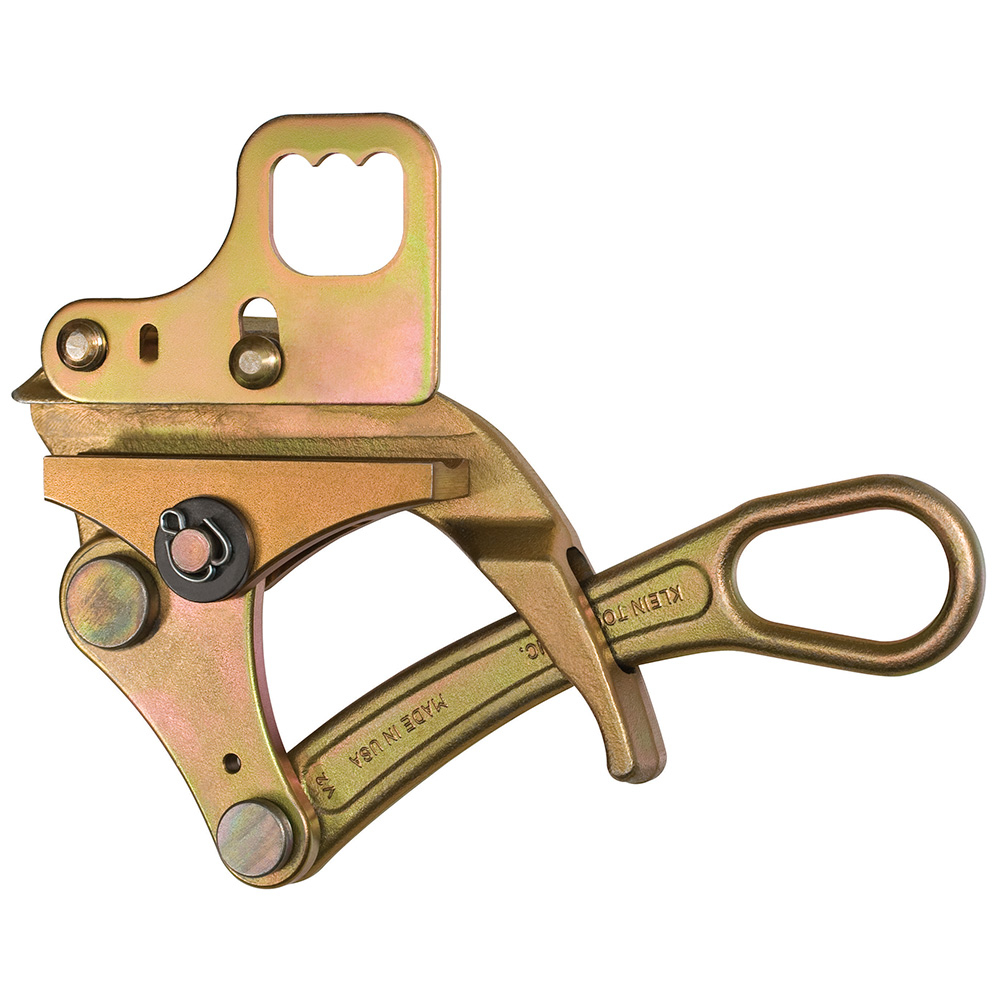

Klein Parallel Jaw Grip 4502 Series with Hot Latch (KT4502)

https://www.etisupply.com/web/image/product.template/1119273/image_1920?unique=f78ba00

SKU: KT4502

  • Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
  • Round jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range
  • Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
  • Max Safe Load of 5000-Pound (2268 kg)
  • Made in USA
  • Weight: 3.75 pounds
  • Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

$ 203.97 203.97 USD $ 203.97 $ 271.96

Not Available For Sale

($ 203.97 / Units)
  • Brand

This combination does not exist.

Klein Tools
Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

KT4502

Parallel Jaw Grip 4502 Series with Hot Latch

The Klein KT4502 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4502 has a jaw length of 3-Inches.

Specifications

  • Cable Type: ACSR, AAC, Copper
  • Type: Parallel Jaw Grip
  • Special Features: Hot Latch
  • Material: Steel
  • Jaw Type: Round
  • Application: Wire Pulling
  • Cable Diameter: 0.18'' to 0.6'' (4.57 to 15.2 mm)
  • Hot Latch: Yes
  • Spring: Yes
  • Locking Handle: No
  • Style: Hot Latch, Spring
  • Swing Latch: No
  • Code Word: Penguin, Pigeon, Guinea, Leghorn, Quail, Minorca, Raven, Petrel, Robin, Grouse, Sparate, Sparrow, Swanate, Swan, Turkey, Daisy, Laurel, Sneezewart, Valerian, Oxlip, Phlox, Aster, Poppy, Pansy, Iris, Rose, Peachbell
  • Teeth Type: Coarse
  • Overall Width: 4 in (10.2 cm)
  • Overall Height: 1.5 in (3.8 cm)
  • Overall Length: 11 in (27.9 cm)
  • Maximum Safe Load (lb): 5000
  • Jaw Length (Inch): 4
  • Maximum Safe Load (kg): 2268
  • Weight: 3.8 lb
  • Jaw Length (cm): 10.2
  • UPC: 092644477522

Additional Information

Warranty
Compliance

Warnings

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Brand Klein Tools
