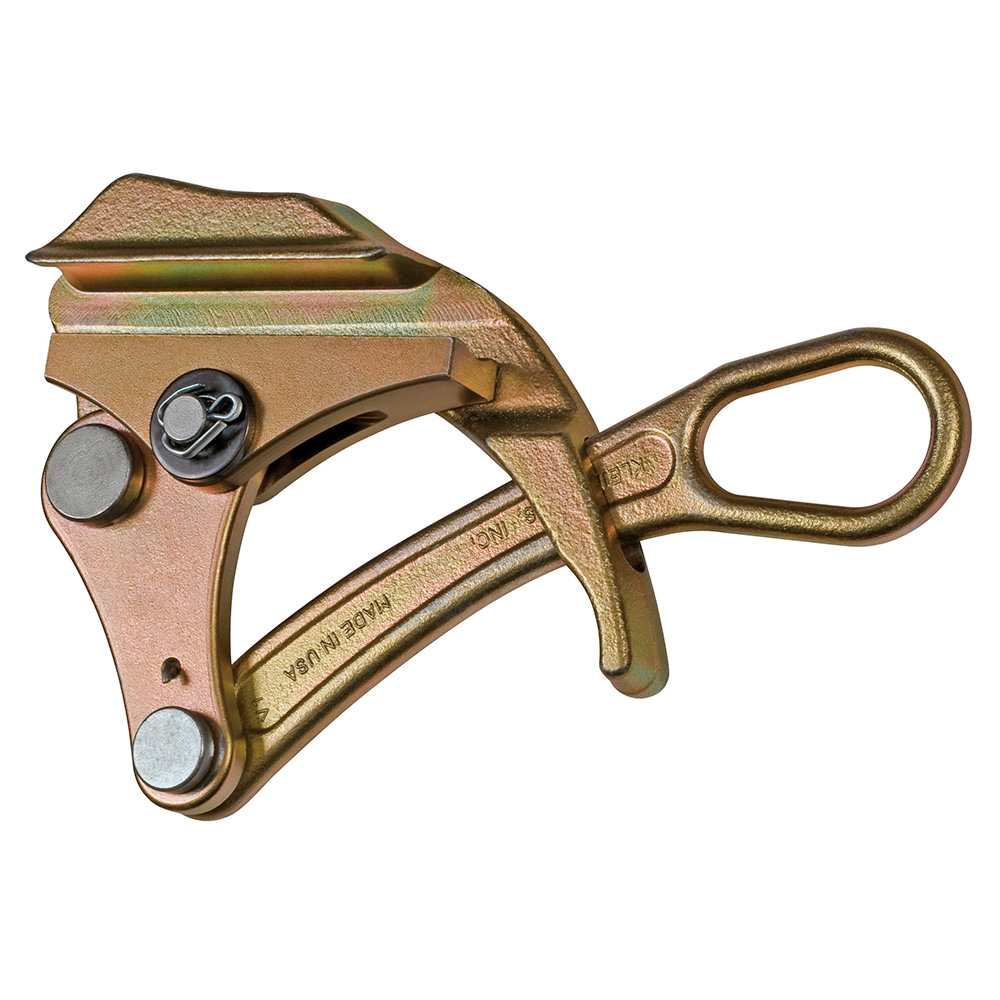

Parallel Jaw Grip 4600 Series

Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round serrated jaw to firmly grip insulated cables and conductors. A hot latch closed automatically to guard against grip accidently disengaging from wire. A large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks.

Specifications

• Cable Type: ACSR, AAC, Copper
• Cable Diameter: 0.3'' to 0.8'' (7.62 to 20.3 mm)
• Jaw Type: Round
• Material: Steel
• Special Features: Spring
• Type: Parallel Jaw Grip
• Application: Wire Pulling
• Hot Latch: No
• Spring: Yes
• Locking Handle: No
• Style: Spring
• Swing Latch: No
• Code Word: Ibis, Brant, Chickadee, Oriole, Linnet, Merlin, Ostrich, Partridge, Waxwing, Penguin, Cochin, Brahma, Dorking, Dotterel, Pigeon, Guinea, Leghorn, Quail, Minorca, Raven, Petrel, Robin, Grouse, Sparate, Sparrow, Cosmos, Syringa, Goldentuft, Canna, Daffodil, Tulip, Peony, Daisy, Laurel, Sneezewart, Valerian, Oxlip, Phlox, Aster, Poppy, Pansy
• Teeth Type: Coarse
• Overall Width: 5 in (12.7 cm)
• Overall Height: 1.5 in (3.8 cm)
• Overall Length: 13 in (33 cm)
• Maximum Safe Load (lb): 10000
• Jaw Length (Inch): 5
• Maximum Safe Load (kg): 4535.9
• Weight: 7 lb
• Jaw Length (cm): 12.7
• UPC: 092644477539

Additional Information

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
