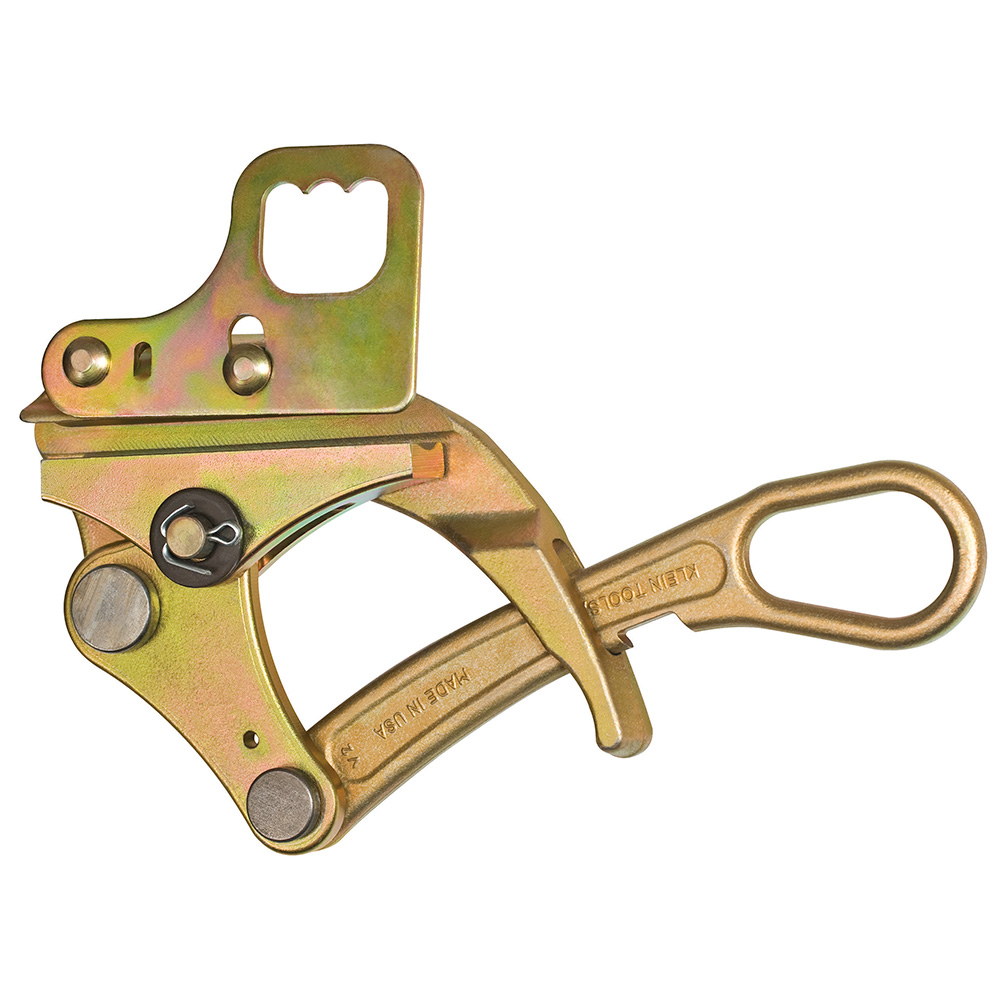

Klein Parallel Jaw Grip 4501 Series with Hot Latch (KT4501)
SKU: KT4501
- Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
- Round jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range
- Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Hot latch closes automatically to guard against grip accidentally disengaging from wire
- Made in USA
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
- Max Safe Load of 5000-Pound (2268 kg)
KT4501
Parallel Jaw Grip 4501 Series with Hot Latch
Klein Tools has been manufacturing high quality grips for more than 135 years. Klein Parallel Jaw Grips are lightweight and compact. They can pull an exceptionally wide range of cable types and sizes.
Specifications
- Type: Parallel Jaw Grip
- Cable Diameter: 0.18'' to 0.6'' (4.57 to 15.2 mm)
- Material: Steel
- Cable Type: ACSR, AAC, Copper
- Application: Wire Pulling
- Jaw Type: Round
- Special Features: Hot Latch, Spring, Locking Handle
- Hot Latch: Yes
- Spring: Yes
- Locking Handle: Yes
- Style: Hot Latch, Spring, Locking Handle
- Swing Latch: No
- Code Word: Penguin, Pigeon, Guinea, Leghorn, Quail, Minorca, Raven, Petrel, Robin, Grouse, Sparate, Sparrow, Swanate, Swan, Turkey, Daisy, Laurel, Sneezewart, Valerian, Oxlip, Phlox, Aster, Poppy, Pansy, Iris, Rose, Peachbell
- Teeth Type: Coarse
- Overall Width: 1.9 in (4.8 cm)
- Overall Height: 5.5 in (14 cm)
- Overall Length: 11 in (27.9 cm)
- Maximum Safe Load (lb): 5000
- Jaw Length (Inch): 4
- Maximum Safe Load (kg): 2268
- Weight: 3.8 lb
- Jaw Length (cm): 10.2
- UPC: 092644477515
Additional Information
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Grips are to be used for temporary installation, not for permanent anchorage.
| Brand | Klein Tools |
