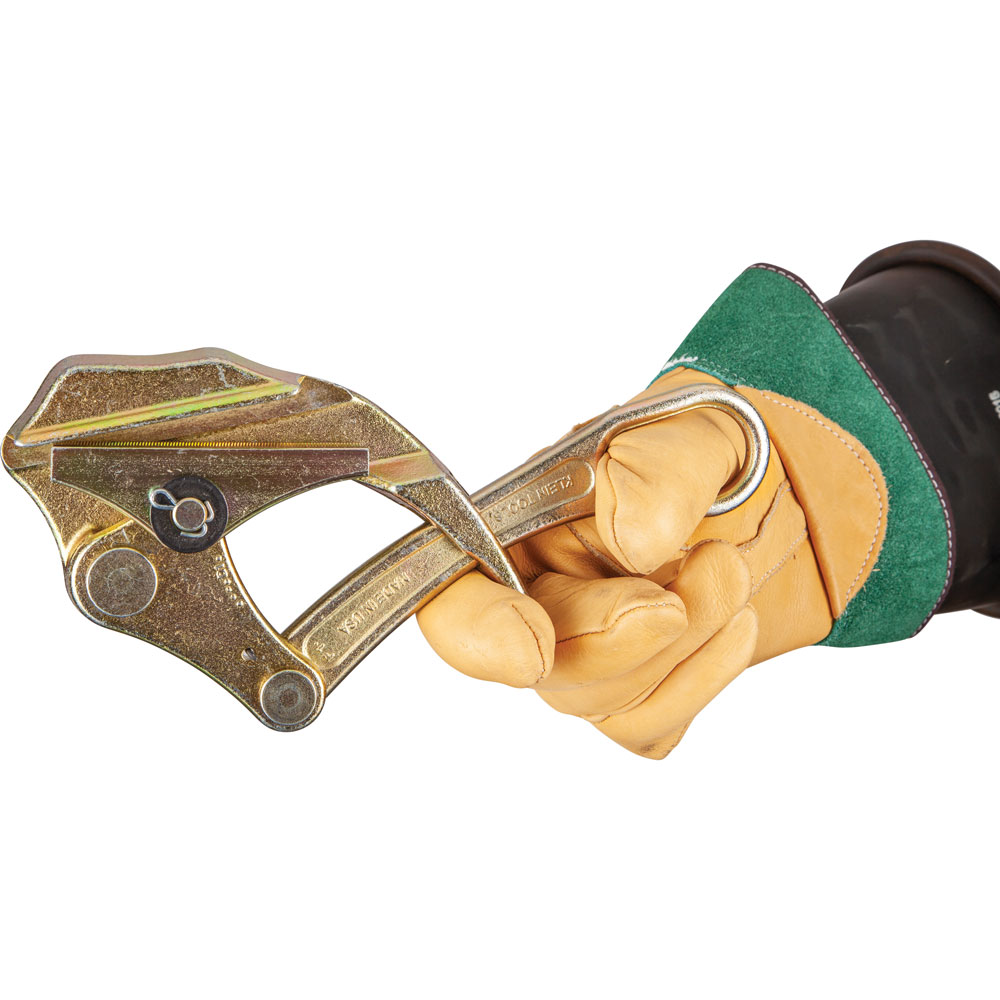

Klein Parallel Jaw Grip 4500 Series for Guy Strand, EHS, Coated Cable (KT45005C)

https://www.etisupply.com/web/image/product.template/1119271/image_1920?unique=f78ba00

SKU: KT45005C

  • Versatile grip holds a wider range of Guy Strand, EHS and coated cable sizes reducing the number of grips needed
  • Round jaw holds 0.18 to 0.60-Inch (4.57 to 15.24 mm) diameter cable range
  • Spring closes grip on cable to hold the initial position
  • Sawtooth jaw profile ensures optimal grip strength on guy strand and EHS cables
  • Made in USA
  • Spring‐loaded for easy one‐handed operation
  • Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
  • Max Safe Load of 5000-Pound (2268 kg)
  • Alternating sawtooth jaw geometry provides greater grip strength
  • Longer jaw increases surface area contact with cable eliminating cable damage

$ 279.89 279.89 USD $ 279.89 $ 373.18

Not Available For Sale

($ 279.89 / Units)
  • Brand

This combination does not exist.

Klein Tools
Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

KT45005C

Parallel Jaw Grip 4500 Series for Guy Strand, EHS, Coated Cable

This versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed. Klein Parallel Jaw Grips are lightweight and compact. The round jaw holds 0.18 to 0.60-Inch diameter cable with a maximum safe load of 5000 lbs. Features a spring that closes the grip on the cable to maintain the initial position.

Specifications

  • Application: Wire Pulling
  • Spring: Yes
  • Material: Steel
  • Hot Latch: No
  • Swing Latch: No
  • Locking Handle: No
  • Special Features: Sawtooth Jaw Profile Ensures Optimal Grip Strength on the Cable/Wire
  • Cable Type: Guy Strand, EHS, Coated
  • Jaw Type: Round
  • Standard: —
  • Cable Diameter: 0.18'' to 0.6'' (4.57 to 15.2 mm)
  • Type: Parallel Jaw Grip
  • Teeth Type: Coarse
  • Overall Width: 1.9 in (4.8 cm)
  • Overall Height: 4.6 in (11.7 cm)
  • Overall Length: 10.9 in (27.7 cm)
  • Maximum Safe Load (lb): 5000
  • Jaw Length (Inch): 4
  • Maximum Safe Load (kg): 2268
  • Weight: 3.8 lb
  • Jaw Length (cm): 10.2
  • UPC: 092644470714

Additional Information

Warranty
Compliance

Warnings

  • Grips are to be used for temporary installation, not for permanent anchorage.
  • When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
