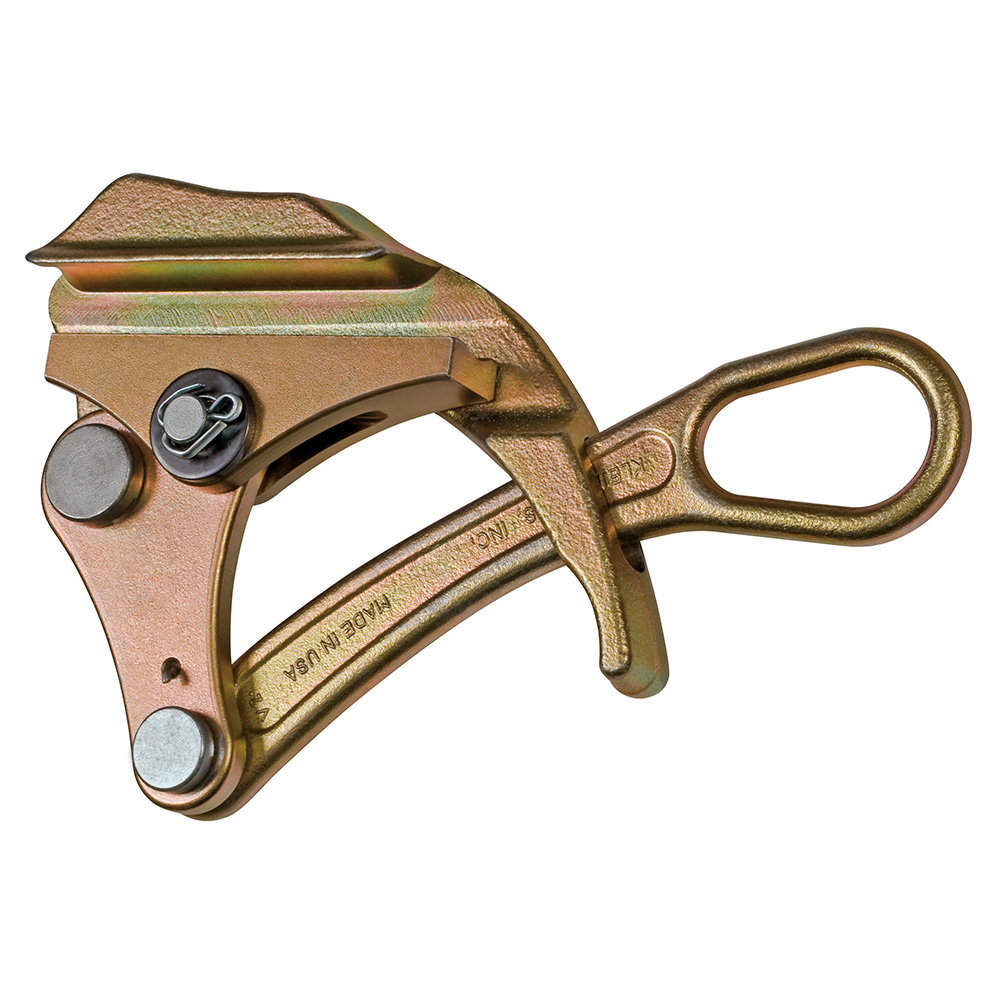

Klein Parallel Jaw Grip 4500 Series for ACSR (KT4500)

https://www.etisupply.com/web/image/product.template/1119270/image_1920?unique=f78ba00

SKU: KT4500

  • Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
  • Round serrated jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range
  • Spring closes grip on cable to hold the initial position
  • Spring‐loaded for easy one‐handed operation
  • Made in USA
  • Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
  • Max Safe Load of 5000-Pound (2268 kg)

$ 203.39 203.39 USD $ 203.39 $ 271.18

Not Available For Sale

($ 203.39 / Units)
  • Brand

This combination does not exist.

Klein Tools
Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

KT4500

Parallel Jaw Grip 4500 Series for ACSR

This versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed. Klein Parallel Jaw Grips are lightweight and compact. The round jaw holds 0.18 - 0.60-inch diameter cable with a maximum safe load of 5000 lbs. Features a spring that closes the grip on the cable to maintain the initial position.

Specifications

  • Application: Wire Pulling
  • Cable Type: ACSR, AAC, Copper
  • Material: Steel
  • Jaw Type: Round
  • Type: Parallel Jaw Grip
  • Special Features: Sawtooth Jaw Profile Resists Build-up
  • Cable Diameter: 0.18'' to 0.6'' (4.57 to 15.2 mm)
  • Hot Latch: No
  • Spring: Yes
  • Locking Handle: No
  • Style: Spring
  • Swing Latch: No
  • Code Word: Penguin, Pigeon, Guinea, Leghorn, Quail, Minorca, Raven, Petrel, Robin, Grouse, Sparate, Sparrow, Swanate, Swan, Turkey, Daisy, Laurel, Sneezewart, Valerian, Oxlip, Phlox, Aster, Poppy, Pansy, Iris, Rose, Peachbell
  • Teeth Type: Coarse
  • Overall Width: 1.9 in (4.8 cm)
  • Overall Height: 4.6 in (11.7 cm)
  • Overall Length: 10.9 in (27.7 cm)
  • Maximum Safe Load (lb): 5000
  • Jaw Length (Inch): 4
  • Maximum Safe Load (kg): 2268
  • Weight: 3.8 lb
  • Jaw Length (cm): 10.2
  • UPC: 092644477508

Additional Information

Warranty
Compliance

Warnings

  • Grips are to be used for temporary installation, not for permanent anchorage.
  • When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
