Kyoritsu KM2001A DMM with 10mm open jaw AC/DC Clamp Sensor *Renewal

Price:

$ 170.00

Kyoritsu KM2001A DMM with 10mm open jaw AC/DC Clamp Sensor *Renewal
  2. Shop
  3. Kyoritsu KM2001A DMM with 10mm open jaw AC/DC Clamp Sensor *Renewal
Kyoritsu KM 2012RA DMM with 12mm open jaw AC/DC Clamp Sensor with True RMS *Renewal
Kyoritsu KM 2012RA DMM with 12mm open jaw AC/DC Clamp Sensor with True RMS *Renewal
$ 208.00
$ 208.00
Kyoritsu KT 170 Voltage Tester with KEWTECH brand
Kyoritsu KT 170 Voltage Tester with KEWTECH brand
$ 208.00
$ 208.00

Kyoritsu KM2001A DMM with 10mm open jaw AC/DC Clamp Sensor *Renewal

https://www.etisupply.com/web/image/product.template/1058255/image_1920?unique=b43e63a

$ 170.00 170.0 USD $ 170.00

Not Available For Sale

($ 170.00 / Units)
  • Brand

This combination does not exist.

ACDC 600V
Contact Us
Kyoritsu


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

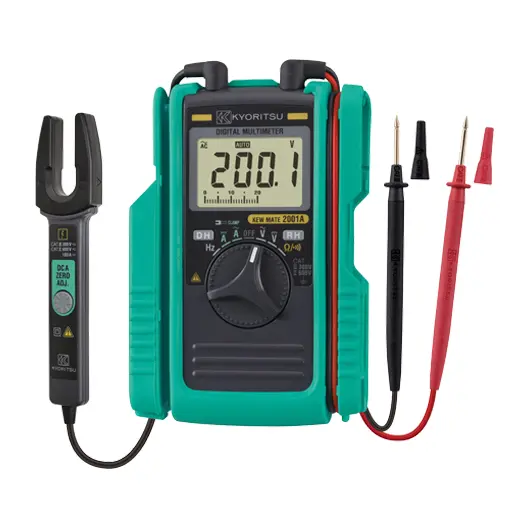

DIGITAL MULTIMETER WITH AC/DC CLAMP SENSOR

KEW MATE 2001A

Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 100A

  • Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 100A
  • Cable strength increased with robust cable protection
  • Test probe can be fixed to the holster
  • Can measure AC/DC current and voltage
  • Pocket size and heavy duty design
  • Test lead cap to protect from short circuit accident
  • The open jaws are thin, perfect to clamp wires even in tight spaces

3D View

Video

Product Overview

New cable rubber protection

Application examples

Specification

DC V340.0mV/3.400/34.00/340.0/600V
(Input Impedance: Approx. 10MΩ)
±1.5%rdg±4dgt
AC V3.400/34.00/340.0/600V
(Input Impedance: Approx. 10MΩ)
±1.5%rdg±5dgt [50 to 400Hz]
DC A100.0A
±2%rdg±5dgt
AC A100.0A
±2%rdg±5dgt (50/60Hz)
Ω340.0Ω/3.400/34.00/340.0kΩ/3.400/34.00MΩ
±1%rdg±3dgt (0 to 340kΩ)
±5%rdg±5dgt (3.4MΩ)
±15%rdg±5dgt (34MΩ)
Continuity buzzerBuzzer sounds below 30±10Ω
(Continuity buzzer works on 340Ω range only)
Frequency

(AC A) 3.400/10.00kHz

±0.1%rdg±1dgt

(AC V) 3.400/34.00/300.0kHz

±0.1%rdg±1dgt

(Input sensitivity Current: more than 25A, Voltage: more than 30V)

Conductor sizeØ10mm max.
Applicable standardsIEC 61010-1 CAT III 300V / CAT II 600V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS)
Power sourceR03 (AAA)(1.5V) × 2 * Continuous measuring time: Approx. 45 hours (Auto power save: Approx. 10 minutes)
Dimension128(L) × 92(W) × 27(D)mm
WeightApprox. 220g (including batteries)
AccessoriesR03 (AAA) × 2
Instruction Manual
Optional accessories9107 (Soft case)

Accessories

Catalog & Document

Brand Kyoritsu
