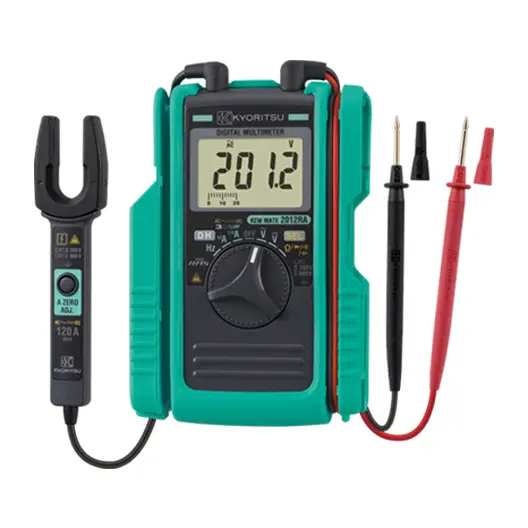

Kyoritsu KM 2012RA DMM with 12mm open jaw AC/DC Clamp Sensor with True RMS *Renewal

Price:

$ 208.00

Kyoritsu KM 2012RA DMM with 12mm open jaw AC/DC Clamp Sensor with True RMS *Renewal
  2. Shop
  3. Kyoritsu KM 2012RA DMM with 12mm open jaw AC/DC Clamp Sensor with True RMS *Renewal
Central Tools 3C301 – STORM™ Digital Caliper, Range: 0-6”/0-150mm
Central Tools 3C301 – STORM™ Digital Caliper, Range: 0-6”/0-150mm
$ 65.99
$ 65.99
Jonard TK-120 Fiber Prep Kit Basic
Jonard TK-120 Fiber Prep Kit Basic
$ 383.95
$ 383.95

Kyoritsu KM 2012RA DMM with 12mm open jaw AC/DC Clamp Sensor with True RMS *Renewal

https://www.etisupply.com/web/image/product.template/1058256/image_1920?unique=dc15e26

$ 208.00 208.0 USD $ 208.00

Not Available For Sale

($ 208.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DIGITAL MULTIMETER WITH AC/DC CLAMP SENSOR

KEW MATE 2012RA

Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 120A

  • Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 120A
  • Cable strength increased with robust cable protection
  • Test probe can be fixed to the holster
  • Can measure AC/DC current and voltage
  • Pocket size and heavy duty design
  • Test lead cap to protect from short circuit accident
  • The open jaws are thin, perfect to clamp wires even in tight spaces


3D View

Video

Product Overview

New cable rubber protection

Application examples

Specification

DC V600.0mV/6.000/60.00/600.0V
(Input impedance: Approx. 10MΩ)
±1.0%rdg±3dgt
AC V6.000/60.00/600.0V
(Input impedance: Approx. 10MΩ)
±1.5%rdg±5dgt (45 to 400Hz)
DC A60.00/120.0A
±2.0%rdg±8dgt (60A)
±2.0%rdg±5dgt (120A)
AC A60.00/120.0A
±2.0%rdg±5dgt (45 to 65Hz)
Ω600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ
±1.0%rdg±5dgt (600Ω/6/60/600kΩ)
±2.0%rdg±5dgt (6MΩ)
±3.0%rdg±5dgt (60MΩ)
Continuity buzzerBuzzer sounds below 35±25Ω
Diode test2.000V
±3.0%rdg±5dgt
Open circuit voltage: Approx. 2.7V
Capacitance400.0nF/4.000/40.00µF
±2.5%rdg±10dgt
Frequency(AC A) 99.99/400.0Hz
±0.2%rdg±2dgt (100Hz)
±0.1%rdg±1dgt (400Hz)
(AC V) 99.99/999.9Hz/9.999/99.99/300.0kHz
±0.2%rdg±2dgt (100Hz)
±0.1%rdg±1dgt (1000Hz/10/100/300.0kHz)
(Input sensitivity Current: more than 6A Voltage: more than 6V [to 10kHz]/more than 20V [10 to 300kHz])
Conductor sizeØ12mm max.
Applicable standardsIEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS)
Power sourceR03 (AAA)(1.5V) × 2
* Continuous measuring time: DCV: approx. 150hours, ACA: Approx. 25hours (Auto power save: Approx. 15 minutes)
Dimension128 (L) × 92 (W) × 27 (D) mm
WeightApprox. 220g (including batteries)
Accessories

R03 (AAA) × 2

Instruction manual

Optional accessories9107 (Soft case)

Optional Accessories

Catalog & Document

Brand Kyoritsu
