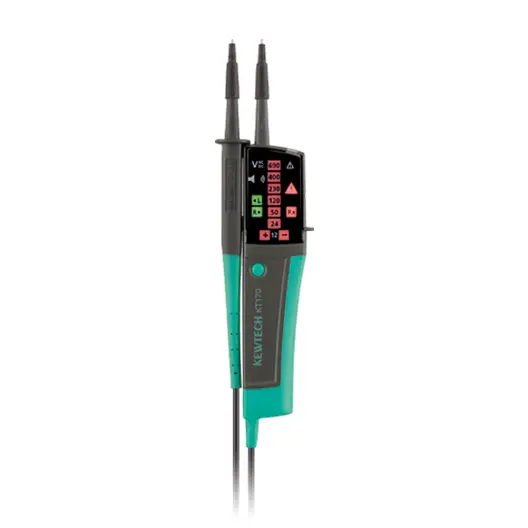

Kyoritsu KT 170 Voltage Tester with KEWTECH brand
VOLTAGE TESTER
KT 170
Comply with the latest standards IEC 61243 and IEC 61010
- Comply with the latest standards IEC 61243 and IEC 61010
- Novel design
Large and bright LEDs: Values are visible in the dark place
Ergonomic design fits in the hand - Two functions are available in one model
“Measurement without battery” and “Self Test (all LED on)” - Test leads withstand harsh environments at low temperature
- Penlight (white LED)
- Auto power ON/OFF
- Audible indication
- Variable test tips, φ2mm or φ4mm
- Probe protection cover can store the attachment of caps
- IP65 (IEC 60529)
Product Overview
Voltage Test (Double-pole Test)
Single-pole Phase Test
Variable top tips
Store the attachment of caps
Probe Protection Cover
4mm Tips Replacement
How to fixing 4mm Tips on L1 probe- and L2 probe+.
Specification
| Voltage Test | ||
| Voltage Range | 12 to 690V AC/DC | |
| Nominal Voltage | 12/24/50/120/230/400/690V AC (16 to 400Hz), DC (±) | |
| Tolerance | Light on at more than: | |
| (Threshold Voltage) | 7±3V (12V LED) 18±3V (24V LED) 37.5±4V (50V LED) 75%±5% of nominal voltage (120/230/400/690V LED) | |
| Response Time | <0.6s at 100% of each nominal voltage | |
| Peak Current | ls<3.5mA (at 690V) | |
| Measurement Duty | 30s ON (operation time) 240s OFF (recovery time) | |
| Single-pole Phase Test | ||
| Voltage Range | 100 to 690V AC (50/60Hz) | |
| Phase Rotation Test | ||
| System | Three-phase 4-wire system 200 to 690V phase-to-phase AC (50/60Hz) | |
| Phase Range | 120±5 degree | |
| Continuity Test | ||
| Detection Range | 0 to 400kΩ+50% | |
| Test Current | Approx. 1.5μA (battery 3V, 0Ω) | |
| Applicable standards | IEC 61243-3, IEC 61010-1, IEC 61557-7 CAT Ⅳ 600V / CAT Ⅲ 690V Pollution degree 2, IEC 60529 (IP65) | |
| Operating temperature and humidity range | -15 to 55°C, relative humidity 85% or less (no condensation) | |
| Storage temperature and humidity range | -20 to 70°C, relative humidity 85% or less (no condensation) | |
| Power source | LR03 (AAA) 1.5V×2 | |
| Dimension | 246(L)×64(W)×26(D) mm | |
| Weight | Approx. 190g (including batteries) | |
| Accessories | LR03 (AAA) 1.5V×2 KTA01 (4mm metal tips [2pcs/set]) KTA02 (4mm rubber caps [2pcs/set]) Instruction manual |
