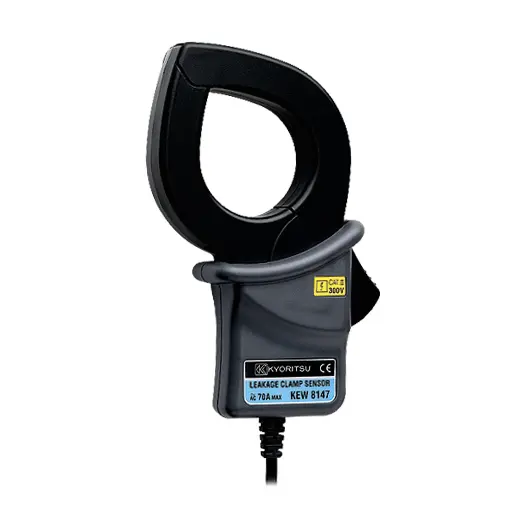

Kyoritsu 8147 Leakage & Load Current Clamp Sensor 70A AC (jaw: 40mm dia.)

This combination does not exist.

Add to Cart

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

LEAKAGE & LOAD CURRENT CLAMP SENSOR

KEW 8147

Ø40mm

Applicable model

5010, 5020, 5050(*), 6310(*), 6315(*)

* Please check the "Applicable model list" before using the product.

Conductor size	Ø40mm
Rated current	AC 70A
Output voltage	AC 3500mV/70A (AC 50mV/A)
Accuracy	0 to 40A ±1.0%rdg±0.1mV (50/60Hz) ±2.0%rdg±0.2mV (40Hz to 1kHz) 40 to 70A ±5.0%rdg (50/60Hz) ±10.0%rdg (45Hz to 1kHz)
Cable length	Approx. 2m
Output connector	MINI DIN 6PIN
Output impedance	Approx. 100Ω
Applicable standards	IEC 61010-1 , IEC 61010-2-032 CAT III 300V pollution degree 2 , IEC 61326
Operating temperature and humidity range	0 to 50°C , relative humidity 85% or less (no condensation)
Dimension	128(L) x 81(W) x 36(D) mm
Weight	Approx.240g
Accessories	9095 (Carrying case) Instruction manual , Cable marker
Optional Accessories	7146 (Banana Ø4 adjuster plug) 7185 (Extension Cable)

Brand

Kyoritsu
