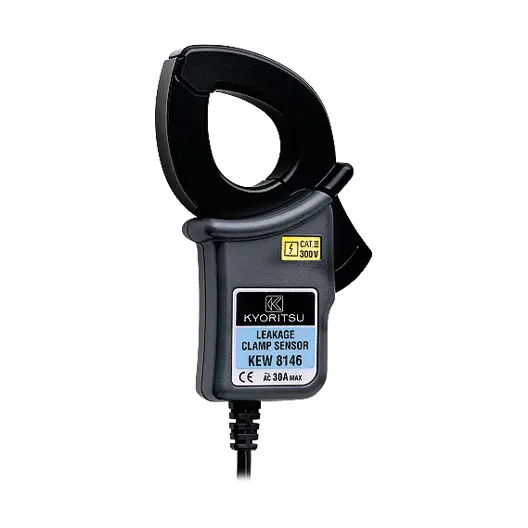

Kyoritsu 8146 Leakage & Load Current Clamp Sensor 30A AC (jaw: 24mm dia.)

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

LEAKAGE & LOAD CURRENT CLAMP SENSOR

KEW 8146

Ø24mm

Applicable model

5010, 5020, 5050(*1), 6310(*2), 6315(*2)

* Please check the "Applicable model list" before using the product.

Conductor size	Ø24mm
Rated current	AC 30A
Output voltage	AC 1500mV/30A (AC 50mV/A)
Accuracy	0 to 15A ±1.0%rdg±0.1mV (50/60Hz) ±2.0%rdg±0.2mV (40Hz to 1kHz) 15 to 30A ±5.0%rdg (50/60Hz) ±10.0%rdg (45Hz to 1kHz)
Cable length	Approx. 2m
Output connector	MINI DIN 6PIN
Output impedance	Approx. 90Ω
Applicable standards	IEC 61010-1 , IEC 61010-2-032 CAT III 300V pollution degree 2 , IEC 61326
Operating temperature and humidity range	0 to 50°C , relative humidity 85% or less (no condensation)
Dimension	100(L) x 60(W) x 26(D) mm
Weight	Approx.150g
Accessories	9095 (Carrying case) Instruction manual , Cable marker
Optional Accessories	7146 (Banana Ø4 adjuster plug) 7185 (Extension Cable)

Brand

Kyoritsu
