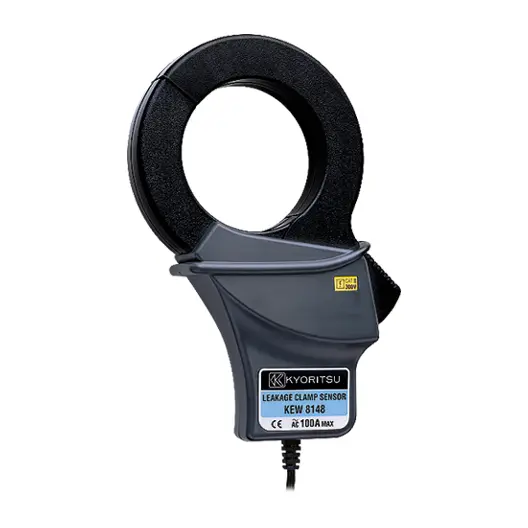

Kyoritsu 8148 Leakage & Load Current Clamp Sensor 100A AC (jaw: 68mm dia.)

This combination does not exist.

Add to Cart

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

LEAKAGE & LOAD CURRENT CLAMP SENSOR

KEW 8148

Ø68mm

Applicable model

5010, 5020, 5050(*), 6310(*), 6315(*)

* Please check the "Applicable model list" before using the product.

Conductor size	Ø68mm
Rated current	AC 100A
Output voltage	AC 5000mV/100A (AC 50mV/A)
Accuracy	0 to 80A ±1.0%rdg±0.1mV (50/60Hz) ±2.0%rdg±0.2mV (40Hz to 1kHz) 80 to 100A ±5.0%rdg (50/60Hz) ±10.0%rdg (45Hz to 1kHz)
Cable length	Approx. 2m
Output connector	MINI DIN 6PIN
Output impedance	Approx. 60Ω
Applicable standards	IEC 61010-1 , IEC 61010-2-032 CAT III 300V pollution degree 2 , IEC 61326
Operating temperature and humidity range	0 to 50°C , relative humidity 85% or less (no condensation)
Dimension	186(L) x 129(W) x 53(D) mm
Weight	Approx.510g
Accessories	9094 (Carrying case) Instruction manual , Cable marker
Optional Accessories	7146 (Banana Ø4 adjuster plug) 7185 (Extension Cable)

Brand

Kyoritsu
