Kyoritsu 3431 Analogue Insulation Resistance Tester

Price:

$ 434.00

Kyoritsu 3431 Analogue Insulation Resistance Tester
  2. Shop
  3. Kyoritsu 3431 Analogue Insulation Resistance Tester
Kyoritsu 3166 Analogue Insulation Resistance Tester
Kyoritsu 3166 Analogue Insulation Resistance Tester
$ 208.00
$ 208.00
Kyoritsu 3551 Digital Insulation Resistance Tester 6 Ranges
Kyoritsu 3551 Digital Insulation Resistance Tester 6 Ranges
$ 521.00
$ 521.00

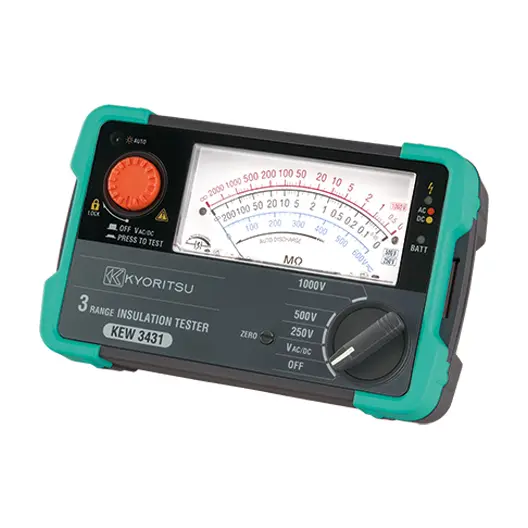

Kyoritsu 3431 Analogue Insulation Resistance Tester

https://www.etisupply.com/web/image/product.template/1058304/image_1920?unique=b43e63a

$ 434.00 434.0 USD $ 434.00

Not Available For Sale

($ 434.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

ANALOG INSULATION TESTER

KEW 3431

Compact and lightweight design

  • Compact and lightweight design
  • Scale light and LED spot light to facilitate working at dimly illuminated location or at nighttime work
  • Built-in illuminance sensor automatically turns lights on and off
  • Test lead with remote control switch set is supplied as standard accessory
  • Live circuit warning with blinking LED and buzzer

Specification

Insulation resistance

Test voltage 250V500V1000V
Max. effective scale value200MΩ2000MΩ
Mid-scale value5MΩ50MΩ
First effective measuring range0.1 to 100MΩ1 to 1000MΩ
Accuracy±5% of indicated value
Second effective measuring rangeMeasuring ranges other than above, 0 and ∞
Accuracy±10% of indicated value
LED insulation state indicator indicating result by red / green color0.25MΩ0.5MΩ1MΩ
Voltage measurement

Voltage rangeAC 600V [45 to 65Hz]
DC 600V
Accuracy±5% of full scale value
Applicable standardsIEC 61010-1, 2-030 CAT Ⅲ 600V, IEC 61557-1, -2
IEC 61010-031, IEC 61010-2-034
Power sourceLR6/R6(AA)(1.5V) × 4
Dimension / Weight97(L) × 156(W) × 46(D)mm / Approx. 430g
Included Accessories7260 (Test lead with remote control switch)
7261A (Test lead with alligator clip)
8017A (Extension prod long)
9121 (Shoulder strap)
9173 (Carrying case)
LR6 (AA) × 4, Instruction manual
Optional accessories9186A (Carrying case)
9187 (Cord case)
7243A (L-shaped probe)
8016 (Hook type prod)

Accessories

Optional Accessories

Catalog & Document

Brand Kyoritsu
