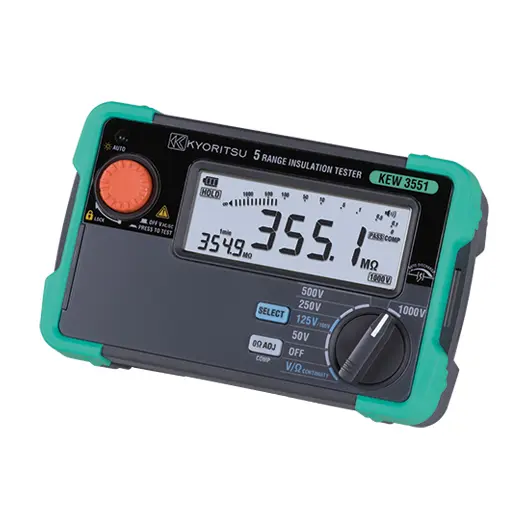

Kyoritsu 3551 Digital Insulation Resistance Tester 6 Ranges

Price:

$ 521.00

Kyoritsu 3551 Digital Insulation Resistance Tester 6 Ranges
  2. Shop
  3. Kyoritsu 3551 Digital Insulation Resistance Tester 6 Ranges
Central Tools 3C301 – STORM™ Digital Caliper, Range: 0-6”/0-150mm
Central Tools 3C301 – STORM™ Digital Caliper, Range: 0-6”/0-150mm
$ 65.99
$ 65.99
Jonard TK-120 Fiber Prep Kit Basic
Jonard TK-120 Fiber Prep Kit Basic
$ 383.95
$ 383.95

Kyoritsu 3551 Digital Insulation Resistance Tester 6 Ranges

https://www.etisupply.com/web/image/product.template/1058305/image_1920?unique=dc15e26

$ 521.00 521.0 USD $ 521.00

Not Available For Sale

($ 521.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DIGITAL INSULATION / CONTINUITY TESTER

KEW 3551

World's fastest class measurement speed (0.5 sec.)

  • World's fastest class measurement speed (0.5 sec.)
  • 6 ranges are available for insulation resistance test (50/100/125/250/500/1000V)
  • Various lineup definitely fulfills your needs


    KEW3551 : Standard model

    KEW3552 : With memory function

    KEW3552BT : With memory and Bluetooth communication functions

Specification

Insulation resistance
Test voltage50V100V125V250V500V1000V
Measuring range
(Auto-ranging)		100.0MΩ200.0MΩ250.0MΩ500.0MΩ2000MΩ 4000MΩ
Mid-scale value2MΩ5MΩ5MΩ10MΩ100MΩ200MΩ
First effective measuring range0.100 to 10.00MΩ0.100 to 20.00MΩ0.100 to 25.00MΩ0.100 to 50.0MΩ0.100 to 500MΩ0.100 to 1000MΩ
Accuracy±2%rdg ±2dgt
Second effective measuring range0.050 to 0.099MΩ
10.01 to 100.0MΩ		0.050 to 0.099MΩ
20.01 to 200.0MΩ		0.050 to 0.099MΩ
25.01 to 250.0MΩ		0.050 to 0.099MΩ
50.1 to 500MΩ		0.050 to 0.099MΩ
501 to 2000MΩ		0.050 to 0.099MΩ
1001 to 4000MΩ
Accuracy±5%rdg
(0.050 to 0.099MΩ: ±2%rdg±4dgt)
Rated current1.0 to 1.1mA
Output short circuit current1.5mA max
Ω / Continuty
Auto-ranging40.00/400.0/4000Ω
Accuracy±2.5%rdg ±8dgt
Output voltage on open circuit5V（4 to 6.9V）
Output short circuit current200mA or more
Voltage
Voltage rangeAC 2.0 to 600V（45 to 65Hz）
DC -2.0 to -600V +2.0 to +600V
Accuracy±1%rdg ±4dgt
General
Applicable standardsIEC61010 CATⅢ 600V / CAT IV 300V, IEC 61010-2-034
IEC61557-1,2,4 IEC61326-1,2-2 IEC60529（IP40）
Power sourceLR6/R6（AA）（1.5V）x4
Dimension / Weight97(L) x 156(W) x 46(D) mm / Approx. 490g（including battery）
Accessories7260（Test lead with remote control switch）
7261A（Test lead with alligator clip）
8017A（Extension prod long）
9173（Carrying case）
9121（Shoulder strap）
LR6（AA）x4 Instruction manual
Optional Accessories7243A（L-shaped probe）
8016（Hook type prod）
9186A (Carrying case)
9187 (Cord case)

Accessories

Optional Accessories

Catalog & Document

Brand Kyoritsu
