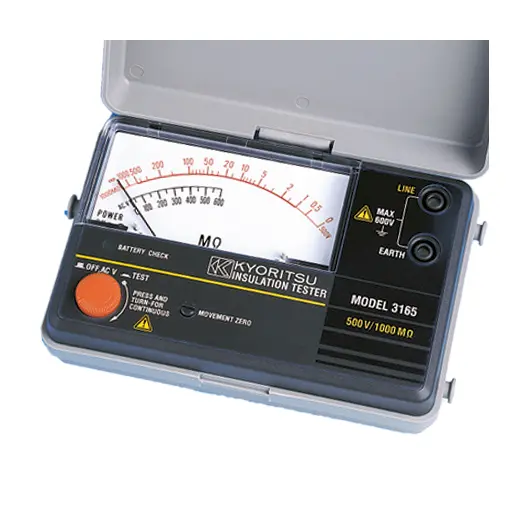

Kyoritsu 3165 Analogue Insulation Resistance Tester
ANALOG INSULATION TESTER
MODEL 3165
Analog Insulation Tester
- 500V/1000MΩ
- Expanded megohm scale for easy reading
- New robust housing case to prevent damage
- AC voltmeter scale for easy reading
Specification
| Insulation Resistance | |
| DC Test Voltage | 500V |
| Max. effective scale value | 1000MΩ |
| Mid-scale value | 20MΩ |
| First effective measuring range | 1 to 500MΩ |
| Accuracy | ±5%rdg |
| Second effective measuring range | 0.5/1000MΩ |
| Accuracy | ±10%rdg |
| AC Voltage | |
| AC voltage range | 600V |
| Accuracy | ±3% of full scale value |
| General | |
| Power source | R6 (AA) (1.5V) × 4 |
| Dimension | 90(L) × 137(W) × 40(D)mm |
| Weight | Approx. 330g |
| Accessories | 7025 (Test leads) 9074 (Cord case) 9123 (Shoulder strap) R6 (AA) × 4 Instruction Manual |
Accessories
Catalog & Document
| Brand | Kyoritsu |
