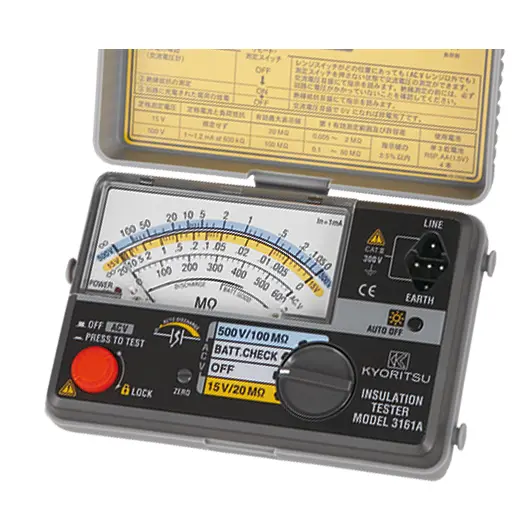

Kyoritsu 3161A Analogue Insulation Resistance Tester
ANALOG INSULATION TESTER
MODEL 3161A
Analog Insulation / Continuity Tester
- Compact and lightweight insulation tester
It weighs only 340g(battery included), but carries full measurement functions - Automatic discharge of circuit capacitance
- Test leads with remote control switch
- New robust housing case
- Backlight function
Specification
| Insulation Resistance | |
| DC Test Voltage | 15/500V |
| Max. effective scale value | 20/100MΩ |
| Mid-scale value | 0.05/2MΩ |
| First effective measuring range | 0.005 to 2/0.1 to 50MΩ |
| Accuracy | ±5% of Indicated Value |
| Second effective measuring range | Measuring ranges other than above, 0 and ∞ |
| Accuracy | ±10% of Indicated Value |
| AC Voltage | |
| AC voltage range | 600V |
| Accuracy | ±3% of Full Scale |
| General | |
| Applicable standard | IEC/EN 61010-1 CAT III 300V, CAT II 600V IEC 61010-2-034 |
| Power source | R6 (AA) (1.5V) × 4 |
| Dimension | 90(L) × 137(W) × 40(D) mm |
| Weight | Approx. 340g |
| Accessories | 7149A (Remote control switch set) Neck Strap 9123 (Shoulder strap) R6 (AA) × 4 Instruction Manual |
| Optional accessories | 8016 (Hook type prod) |
Accessories
Optional Accessories
Catalog & Document
- Instruction Manual
| Brand | Kyoritsu |
