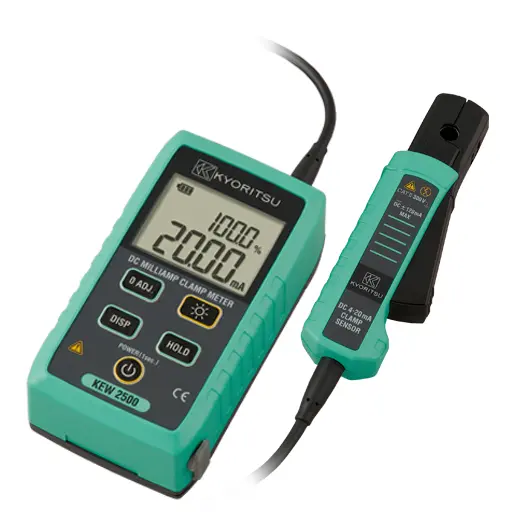

Kyoritsu 2500 DC Milliamp Clamp Meter (jaw: 6mm dia.)

Price:

$ 753.00

Kyoritsu 2500 DC Milliamp Clamp Meter (jaw: 6mm dia.)
  2. Shop
  3. Kyoritsu 2500 DC Milliamp Clamp Meter (jaw: 6mm dia.)
Kyoritsu 2434 Digital AC Leakage Current Clamp Meter (jaw: 28mm dia.)
Kyoritsu 2434 Digital AC Leakage Current Clamp Meter (jaw: 28mm dia.)
$ 427.00
$ 427.00
Kyoritsu 2510 DC Milliamp Clamp with Logger (jaw: 6mm dia.)
Kyoritsu 2510 DC Milliamp Clamp with Logger (jaw: 6mm dia.)
$ 941.00
$ 941.00

Kyoritsu 2500 DC Milliamp Clamp Meter (jaw: 6mm dia.)

https://www.etisupply.com/web/image/product.template/1058287/image_1920?unique=b43e63a

$ 753.00 753.0 USD $ 753.00

Not Available For Sale

($ 753.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

DC MILLIAMP CLAMP METER

KEW 2500

0.01mA resolution for DC current

  •  0.01mA resolution for DC current
  •  Top class mearuement with 0.2% accuracy
  •  Ø6mm clamp jaw easy to use in tight places
  •  Measurement from 0.01 to 120.0mA
  •  Dual display with backlight shows both measured value (mA) and percentage value of 4 to 20 mA span
  •  Spotlight for illuminating measurement point
  •  Analog output terminal for recorder connection

Specification

DC A20/100mA(Auto-ranging)
±0.2%rdg±5dgt (0.00 to 21.49mA)
±1.0%rdg±5dgt (21.0 to 120.0mA)
Conductor sizeØ6mm max.
Analog outputRecorder: DC 1000mV against DC 100mA
Applicable standardsIEC 61010-1 Pollution degree 2
IEC 61010-2-032 , IEC 61326-1(EMC)
IEC 60529 IP40 , EN50581(RoHS)
Operating temperature and humidity range-10 to +50°C , relative humidity 85% or less (no condensation)
Storage temperature and humidity range-20 to +60°C , relative humidity 85% or less (no condensation)
Power sourceR6/LR6 (AA) (1.5V) × 4
Dimension111(L) × 61(W) × 40(D)mm : Display unit
104(L) × 34(W) × 20(D)mm : Sensor
700mm : Sensor cable
WeightApprox. 290g (including batteries)
Accessories9096 (Carrying case)
LR6 (AA) × 4 , Instruction Manual
Optional Accessories7256 (Output cord)
