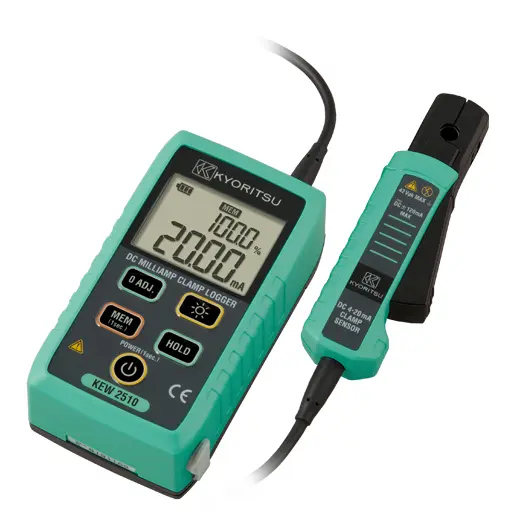

Kyoritsu 2510 DC Milliamp Clamp with Logger (jaw: 6mm dia.)

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

DC MILLIAMP CLAMP LOGGER

KEW 2510

0.01mA resolution for DC current

0.01mA resolution for DC current
Top class mearuement with 0.2% accuracy
Ø6mm clamp jaw easy to use in tight places
Measurement from 0.01 to 120.0mA
Dual display with backlight shows both measured value (mA) and percentage value of 4 to 20 mA span
Spotlight for illuminating measurement point
Analog output terminal for recorder connection
Memory function stores up to 192,000 records
Transfer data to PC via Bluetooth

DC A	20/100mA(Auto-ranging) ±0.2%rdg±5dgt (0.00 to 21.49mA) ±1.0%rdg±5dgt (21.0 to 120.0mA)
Conductor size	φ6mm max.
Analog output	Recorder: DC1000mV against DC100mA
Applicable standards	IEC 61010-1 Pollution degree 2 IEC 61010-2-032, IEC 61326-1(EMC) IEC 60529 IP40, EN50581(RoHS)
Operating temperature and humidity range	-10 to +50°C, relative humidity 85% or less (no condensation)
Storage temperature and humidity range	-20 to +60°C, relative humidity 85% or less (no condensation)
Power source	R6/LR6(AA) (1.5V) x4 (Alkaline LR6 is recommended.) External supply (AC adapter MODEL 8320)
Communication interface	Bluetooth® 5.0
Dimension	111(L)x61(W)x46(D)mm : Display unit 104(L)x33(W)x20(D)mm : Sensor 700mm : Sensor Cable
Weight	Approx. 310g(including batteries)
Accessories	8320(AC adapter), 9096(Carrying case), LR6(AA)x4, Instruction manual
Optional Accessories	7256(Output cord)

Please download “KEW Windows for KEW 2510(software)” from here.

Brand

Kyoritsu
