Kyoritsu 2434 Digital AC Leakage Current Clamp Meter (jaw: 28mm dia.)

Price:

$ 427.00

Kyoritsu 2434 Digital AC Leakage Current Clamp Meter (jaw: 28mm dia.)
  2. Shop
  3. Kyoritsu 2434 Digital AC Leakage Current Clamp Meter (jaw: 28mm dia.)
Kyoritsu 2433R Digital AC Leakage Clamp Meter with True RMS (jaw: 40mm dia.)
Kyoritsu 2433R Digital AC Leakage Clamp Meter with True RMS (jaw: 40mm dia.)
$ 452.00
$ 452.00
Kyoritsu 2500 DC Milliamp Clamp Meter (jaw: 6mm dia.)
Kyoritsu 2500 DC Milliamp Clamp Meter (jaw: 6mm dia.)
$ 753.00
$ 753.00

Kyoritsu 2434 Digital AC Leakage Current Clamp Meter (jaw: 28mm dia.)

https://www.etisupply.com/web/image/product.template/1058286/image_1920?unique=b43e63a

$ 427.00 427.0 USD $ 427.00

Not Available For Sale

($ 427.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

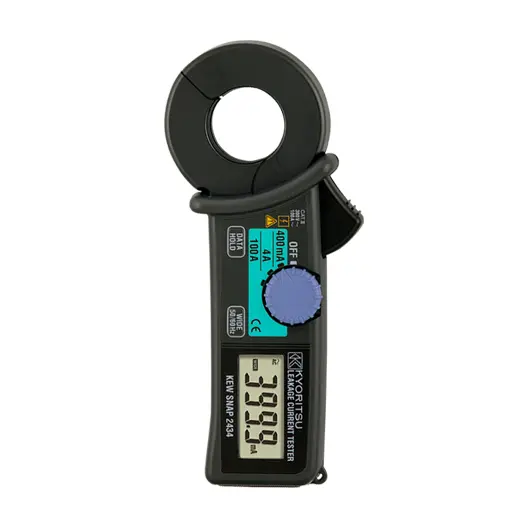

LEAKAGE CLAMP METER

MODEL 2434

Least affected by external stray magnetic field

  • Least affected by external stray magnetic field
  • Frequency Selector Switch to eliminate the effect of harmonics
  • Minimum resolution 0.1mA

Specification

AC A (50/60Hz)400mA/4/100A ±2%rdg±4dgt
AC A (WIDE)400mA/4/100A
±2%rdg±4dgt [50/60Hz]
±3%rdg±5dgt [40 to 400Hz]
Conductor sizeφ28mm max.
Frequency response40 to 400Hz
Effect of external stray magnetic fieldφ15mm 100A20mA AC max.
Safety StandardIEC 61010-1 CAT III 300V,
IEC 61010-2-032
Power sourceR03 (AAA) (1.5V) × 2
Dimension169(L) × 75(W) × 40(D)mm
WeightApprox. 220g (including battery)
Accessories9097(Carrying case)
R03(1.5V) × 2
Instruction Manual

Accessories

Catalog & Document

Brand Kyoritsu
