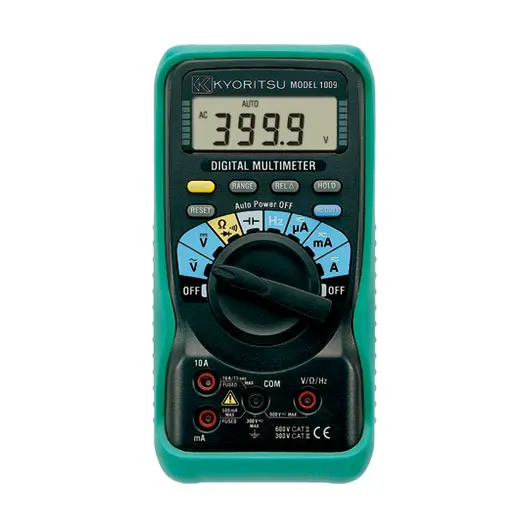

Kyoritsu 1009 Digital Multimeter

Price:

$ 125.00

Kyoritsu 1009 Digital Multimeter
  2. Shop
  3. Kyoritsu 1009 Digital Multimeter
Central Tools 3C301 – STORM™ Digital Caliper, Range: 0-6”/0-150mm
Central Tools 3C301 – STORM™ Digital Caliper, Range: 0-6”/0-150mm
$ 65.99
$ 65.99
Jonard TK-120 Fiber Prep Kit Basic
Jonard TK-120 Fiber Prep Kit Basic
$ 383.95
$ 383.95

Kyoritsu 1009 Digital Multimeter

https://www.etisupply.com/web/image/product.template/1058238/image_1920?unique=dc15e26

This product has no valid combination.

Contact Us
Kyoritsu

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

    DIGITAL MULTIMETER

    MODEL 1009

    Display : 3999 counts

    • Display : 3999 counts
    • Auto-ranging and manual ranging selector provided (with range hold feature)
    • Resistance range provides audible continuity test
    • Automatically turns power off in about 30 minutes to conserve battery life
    • Direct current measurement up to 10A AC and DC

Specification

DC V400mV/4/40/400/600V (Input Impedance 10MΩ)
±0.6%rdg±4dgt (400mV/4/40/400V)
±1.0%rdg±4dgt (600V)
AC V400mV/4/40/400/600V (Input Impedance 10MΩ)
±1.6%rdg±4dgt (20 to 400mV)
±1.3%rdg±4dgt (4/40V)
±1.6%rdg±4dgt (400/600V)
DC A400/4000µA/40/400mA/4/10A
±2.0%rdg±4dgt (400/4000µA)
±1.0%rdg±4dgt (40/400mA)
±1.6%rdg±4dgt (4/10A)
AC A400/4000µA/40/400mA/4/10A
±2.6%rdg±4dgt (400/4000µA)
±2.0%rdg±4dgt (40/400mA/4/10A)
Ω400Ω/4/40/400kΩ/4/40MΩ
±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ)
±2.0%rdg±4dgt (40MΩ)
Continuity buzzer0 to 400Ω (Buzzer sounds below 100Ω)
Diode test1.5V open circuit voltage: Approx. 0.4mA Test Current
Capacitance40/400nF/4/40/100µF
Frequency5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz
DUTY0.1 to 99.9% (Pulse width/Pulse period)
±2.5%±5dgt
Applicable standardsIEC 61010-1 CAT III 300V, IEC 61010-2-031, IEC 61326
Power sourceR6 (1.5V) × 2
Dimension161(L) × 82(W) × 50(D)mm
WeightApprox. 280g
Accessories7066A (Test leads)
8919 (Ceramic fuse[10A/600V]) × 1 (included)
8923 (Fuse [0.5A/600V])× 1
R6× 2
Instruction Manual
Optional accessories7234 (Crocodile clip test lead)
9095 (Carrying case)
