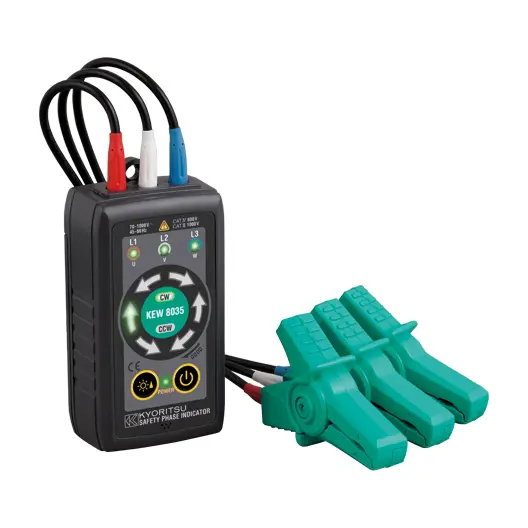

Kyoritsu 8035 Non-contact Phase Indicator

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

NON-CONTACT SAFETY PHASE INDICATOR

KEW 8035

New technology permits safe testing, without the need of direct contact between probes and live wires

New technology permits safe testing, without the need of direct contact between probes and live wires
The insulated alligator clips can clip insulated cables from φ2.4 to 30mm
Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones
A magnet on the backside of the instrument can fix the instrument onto the distribution board
Wide measuring range for 3 phase installations from 70 to 1000V AC
Super brightness function permits clear LEDs indication also in sunshine

Functions	Phase rotation (Clockwise or Counter Clockwise), Presence of open phase
Detection method	Electrostatic induction
Measuring voltage range	From 70 to 1000V AC phase to phase (sine wave, continuous input)
Clamp diameter range	From Ø2.4 to 30mm insulated cables
Measuring frequency range	45 to 66Hz
Phase rotation	Clockwise: Green arrow LEDs "rotate" in clockwise, Green symbol "CW" lits, Intermittent buzzer Counter Clockwise: Red arrow LEDs "rotate" in counter clockwise, Red symbol "CCW" lits, continuous buzzer
Visual indication	LEDs with Super brightness function
Battery voltage warning	Power LED blinks if battery voltage is too low.
Test leads	Double insulated cables, length Approx. 70cm
Colours leads	L1(U): RedL2(V): WhiteL3(W): Blue
Applicable standards	IEC 61010-1 CAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree2 IEC 61326-1, IEC 61557-1, -7
Operating temperature and humidity range	-10 to 50ºC, relative humidity 80% or less (no condensation)
Storage temperature and humidity range	-20 to 60ºC, relative humidity 80% or less (no condensation)
Power supply (DC battery)	LR6(AA)(1.5V) ×4 * Continuous use: Approx. 80 hours (Auto power off in about 10 min.)
Dimension	112(L) × 61(W) × 36(D) mm
Weight	Approx. 380g
Accessories	9096 (Carrying case) LR6(AA) × 4, Instruction manual
