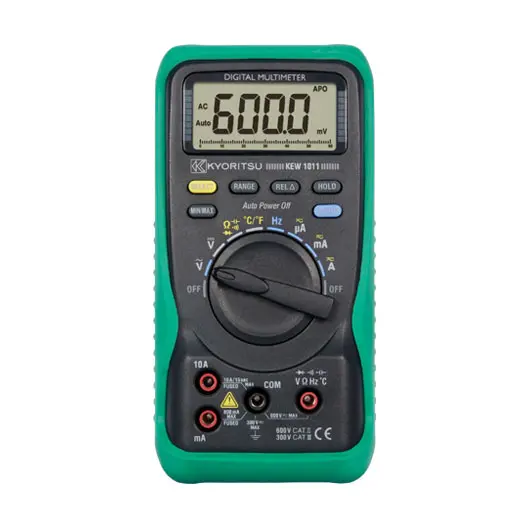

Kyoritsu 1011 Digital Multimeter with Temperature Probe

Price:

$ 158.00

Kyoritsu 1011 Digital Multimeter with Temperature Probe
  2. Shop
  3. Kyoritsu 1011 Digital Multimeter with Temperature Probe
Kyoritsu 1009 Digital Multimeter
Kyoritsu 1009 Digital Multimeter
$ 125.00
$ 125.00
Kyoritsu 1012 Digital Multimeter with True RMS
Kyoritsu 1012 Digital Multimeter with True RMS
$ 172.00
$ 172.00

Kyoritsu 1011 Digital Multimeter with Temperature Probe

https://www.etisupply.com/web/image/product.template/1058239/image_1920?unique=b43e63a

$ 158.00 158.0 USD $ 158.00

Not Available For Sale

($ 158.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

DIGITAL MULTIMETER

KEW 1011

6040 counts with Bar Graph display

  • 6040 counts with Bar Graph display
  • MIN/MAX function enables to record min & max value
  • REL(relative value) function
  • Temperature measurement, selectable for °C and °F
  • DUTY measurement function

Specification

DC V600.0mV/6.000/60.00/600.0/600V (Input Impedance: 10MΩ, 100MΩ only 600mV)
±0.5%±2dgt (600.0mV/6.000/60.00/600.0V)
±0.8%±3dgt (600V)
AC V6.000/60.00/600.0/600V (Input Impedance: 10MΩ)
±1.0%±3dgt (6.000/60.00/600.0V)
±1.5%±3dgt (600V)
DC A600/6000µA/60/600mA/6/10A
±1.2%±3dgt (600/6000µA/60/600mA)
±2.0%±5dgt (6/10A)
AC A600/6000µA/60/600mA/6/10A
±1.5%±4dgt (600/6000µA/60/600mA)
±2.2%±5dgt (6/10A)
Ω600Ω/6/60/600kΩ/6/60MΩ
±1.0%±2dgt (600Ω/6/60/600kΩ/6MΩ)
±2.0%±3dgt (60MΩ)
Continuity buzzer0 to 600Ω (Buzzer sounds below 100Ω)
Diode test2.8V open circuit voltage: Approx. 0.4mA Test Current
Capacitance40/400nF/4/40/400/4000µF
Frequency10/100/1000Hz/10/100/1000kHz/10MHz
DUTY0.1 to 99.9% (Pulse width/Pulse period)
±2.0%±2dgt (to 10kHz)
Temperature-50 to 300ºC (-58 to 572ºF)
(with the use of Temperature probe 8216)
Note: KEW 1011 can measure max. 700ºC In order to measure over 300ºC, please use a K-type temperature probe available in the market.
Applicable standardsIEC 61010-1 CAT III 300V / IEC 61010-1 CAT II 600V Pollution degree 2
IEC 61010-031 IEC 61326
Display6040 Counts
Power sourceR6 (1.5V) × 2 (Auto-power-OFF within 15 minutes)
Dimension161(L) × 82(W) × 50(D)mm
WeightApprox. 280g
Accessories7066A (Test leads)
8216 (K-type Temperature probe)
8918 (Ceramic fuse[0.8A/600V]) × 1 (included)
8919 (Ceramic fuse[10A/600V]) × 1 (included)
R6 × 2
Instruction Manual
Optional accessories7234 (Crocodile clip test lead)
9095 (Carrying case)
