Gedore 14x18 Torque Wrench 4301-01 TORCOFIX SE 80-400 Nm / 60-300 ft-lb (7604120)

Price:

$ 429.75

Gedore 14x18 Torque Wrench 4301-01 TORCOFIX SE 80-400 Nm / 60-300 ft-lb (7604120)
  2. Shop
  3. Gedore 14x18 Torque Wrench 4301-01 TORCOFIX SE 80-400 Nm / 60-300 ft-lb (7604120)
Gedore 14x18 Torque Wrench 4300-01 TORCOFIX SE 60-300 Nm / 45-220 ft-lb (7601020)
Gedore 14x18 Torque Wrench 4300-01 TORCOFIX SE 60-300 Nm / 45-220 ft-lb (7601020)
$ 368.92
$ 368.92
Gedore Z 16 Torque Wrench 4400-02 TORCOFIX Z 5-25 Nm / 3.7-18 ft-lb (1646168)
Gedore Z 16 Torque Wrench 4400-02 TORCOFIX Z 5-25 Nm / 3.7-18 ft-lb (1646168)
$ 266.20
$ 266.20

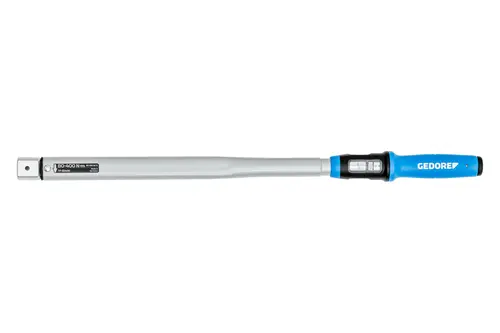

Gedore 14x18 Torque Wrench 4301-01 TORCOFIX SE 80-400 Nm / 60-300 ft-lb (7604120)

https://www.etisupply.com/web/image/product.template/1037975/image_1920?unique=939c97e

Code no. 7604120

$ 429.75 429.75 USD $ 429.75 $ 477.50

Not Available For Sale

($ 429.75 / Units)
  • Brand

This combination does not exist.

14x18 Insert Tool 60-300 ft-lb 80-400 Nm Gedore Tools
Contact Us
Gedore Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

Torque wrench TORCOFIX SE 14x18 80-400 Nm / 60-300 ft-lb

4301-01

Code no.: 7604120 EAN: 4002805430118

Product description

  • Use: Controlled screw tightening in the range of 80-400 Nm / 60-300 lbf·ft
  • Type: Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades

Features

  • Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/- 3% deviation and thus with a greater precision than the standard-stipulated +/- 4%
  • Incl. traceable test certificate
  • For controlled bi-directional tightening
  • Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity (14x18 mm) and high-grade plastic parts
  • Ergonomically shaped, convenient black plastic handgrip with calibration aid
  • Dual scale Nm and lbf·ft below a window with a magnifying-glass effect
  • With micrometre scale for main Nm scale for setting interim values
  • Release system triggers a tactile and audible signal
  • Ergonomic system for torque adjustment
  • Factory depth gauge: 25 mm (14x18 mm)
  • Operation only with end fittings with standardized depth gauges, otherwise inaccuracies can arise

Dimensions and weights

  • Total width: 44 mm
  • Total height: 44 mm
  • Total length: 648.5 mm
  • Weight: 1.589 kg

Scope of delivery

  • Storage/Content: Box
  • Contents (Qty of pieces): 1

Technical characteristics

  • Drive type/drive: Rectangular cavity
  • Drive connector rectangular: 14 x 18 mm
  • Tightening direction: Left and right
  • Trigger mechanism: Short path triggering
  • Torque (max.): 300 lbf·ft / 400 Nm
  • Torque (min.): 60 lbf·ft / 80 Nm
  • Torque wrench function: Triggering
  • Tool holder: Insert tools (open-end, ring, reversible ratchet)
  • Calibration length: 579.2 mm
  • Distance housing - square drive: 25 mm
  • Receptacle width: 33 mm
  • Depth gauge: 25.0 mm
  • Head width: 33.0 mm
  • Head height: 25 mm
  • Material: Lacquered tubular steel construction, galvanized rectangular support
  • Vernier Nm: 1 Nm
  • Precision: +/- 3%
  • Test certificate: DIN EN ISO 6789-2:2017
  • Scale division: 10 Nm

Note: Technical changes and errors reserved.

Brand Gedore Tools
