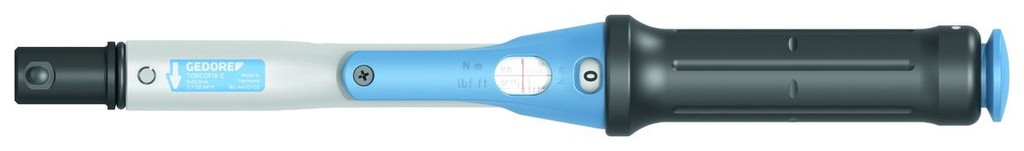

Torque wrench TORCOFIX Z 16 5-25 Nm / 3.7-18 ft-lb

4400-02

Code no.: 1646168

Product description

  • Use: Controlled screw tightening in the range of 5-25 Nm / 3.7-18 lbf·ft
  • Type: Adjustable, releasing and sturdy tubular torque wrench with spigot end for industry and the trades

Features

  • Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3% and thus more precise than the +/- 4% required by the standard
  • For controlled bi-directional tightening
  • Sturdy, varnished tubular steel construction, with phosphated spigot end (Ø 16 mm) and high-grade plastic parts
  • Ergonomically shaped, convenient black plastic handgrip with calibration aid
  • Dual scale Nm and lbf·ft below a window with a magnifying-glass effect
  • With micrometre scale for main Nm scale for setting interim values
  • Release system triggers a tactile and audible signal
  • Ergonomic system for torque adjustment
  • Working calibration pitch: 32 mm (Ø 16 mm)
  • Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise
  • Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket)

Dimensions and weights

  • Total length: 278.0 mm
  • Width: 20.0 mm
  • Weight: 0.330 kg

Scope of delivery

  • Contents (Qty of pieces): 1

Technical characteristics

  • Drive type/drive: Drive pin / spigot
  • Drive connector pin: 16 mm
  • Tightening direction: Left and right
  • Trigger mechanism: Short path triggering
  • Torque (max.): 18 lbf·ft / 25 Nm
  • Torque (min.): 3.7 lbf·ft / 5 Nm
  • Torque wrench function: Triggering
  • Calibration length: 210.5 mm
  • Depth gauge: 32 mm
  • Distance housing-drive: 30 mm
  • Scale divisions: 1 Nm
  • Scale ring graduation: 0.1 Nm
  • Precision: +/- 3%
  • Test certificate: DIN EN ISO 6789-2:2017

Note: Technical changes and errors reserved.
