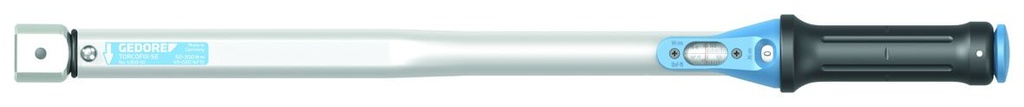

Gedore 14x18 Torque Wrench 4300-01 TORCOFIX SE 60-300 Nm / 45-220 ft-lb (7601020)

https://www.etisupply.com/web/image/product.template/1037973/image_1920?unique=939c97e

Code no. 7601020

$ 368.92 368.92 USD $ 368.92 $ 409.91

Not Available For Sale

($ 368.92 / Units)
  • Brand

This combination does not exist.

14x18 Insert Tool 45-220 ft-lb 60-300 Nm Gedore Tools
Contact Us
Gedore Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

Torque wrench TORCOFIX SE 14x18 60-300 Nm / 45-220 ft-lb

4300-01

Code no.: 7601020 EAN: 4002805430019

Product description

  • Use: Controlled screw tightening in the most widely used range of 5-400 Nm / 3.7-300 lbf·ft
  • Type: Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades

Features

  • Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3% tolerance of scale set torque. The specification of the standard (+/- 4%) is exceeded.
  • For controlled bi-directional tightening
  • Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity (14x18 mm) and high-grade plastic parts
  • Ergonomically shaped, convenient black plastic handgrip with calibration aid
  • Dual scale Nm and lbf·ft below a window with a magnifying-glass effect
  • With micrometre scale for main Nm scale for setting interim values
  • Release system triggers a tactile and audible signal
  • Ergonomic system for torque adjustment
  • Factory depth gauge: 25 mm (14x18 mm)
  • Operation only with end fittings with standardized depth gauges, otherwise inaccuracies can arise

Dimensions and weights

  • Total length: 561.5 mm
  • Width: 27.5 mm
  • Weight: 1.20 kg

Scope of delivery

  • Contents (Qty of pieces): 1

Technical characteristics

  • Drive type/drive: Rectangular cavity
  • Drive connector rectangular: 14 x 18 mm
  • Tightening direction: Left and right
  • Trigger mechanism: Short path triggering
  • Torque (max.): 220 lbf·ft / 300 Nm
  • Torque (min.): 45 lbf·ft / 60 Nm
  • Torque wrench function: Triggering
  • Tool holder: Insert tools (open-end, ring, reversible ratchet)
  • Calibration length: 492.2 mm
  • Distance housing - drive: 42 mm
  • Depth gauge: 25.0 mm
  • Material: Lacquered tubular steel construction, galvanized rectangular support
  • Vernier Nm: 1 Nm
  • Precision: +/- 3%
  • Test certificate: DIN EN ISO 6789
  • Scale division: 10 Nm

Note: Technical changes and errors reserved.
