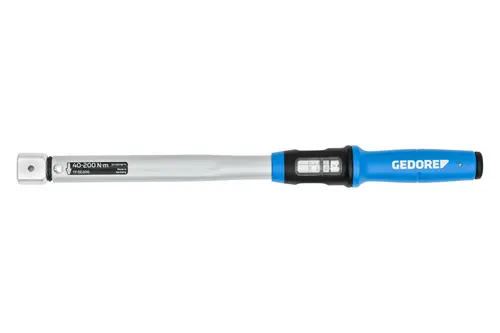

Torque wrench TORCOFIX SE 14x18 40-200 Nm / 30-150 ft-lb

4201-01

Code no.: 7600990 EAN: 4002805420119

Product description

  • Use: Controlled screw tightening in the range from 40-200 Nm / 30-150 lbf·ft
  • Type: Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades

Features

  • Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/- 3% deviation and thus with a greater precision than the standard-stipulated +/- 4%
  • Incl. traceable test certificate
  • For controlled bi-directional tightening
  • Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity (14x18 mm) and high-grade plastic parts
  • Ergonomically shaped, convenient black plastic handgrip with calibration aid
  • Dual scale Nm and lbf·ft below a window with a magnifying-glass effect
  • With micrometre scale for main Nm scale for setting interim values
  • Release system triggers a tactile and audible signal
  • Ergonomic system for torque adjustment
  • Factory depth gauge: 25 mm (14x18 mm)
  • Operation only with end fittings with standardized depth gauges, otherwise inaccuracies can arise

Dimensions and weights

  • Total width: 44 mm
  • Total height: 44 mm
  • Total length: 470.5 mm
  • Weight: 0.959 kg

Scope of delivery

  • Storage/Content: Plastic box
  • Contents (Qty of pieces): 1

Technical characteristics

  • Drive type/drive: Rectangular cavity
  • Drive connector rectangular: 14 x 18 mm
  • Tightening direction: Left and right
  • Trigger mechanism: Short path triggering
  • Torque (max.): 150 lbf·ft / 200 Nm
  • Torque (min.): 30 lbf·ft / 40 Nm
  • Torque wrench function: Triggering
  • Tool holder: Insert tools (open-end, ring, reversible ratchet)
  • Calibration length: 401.2 mm
  • Distance housing - square drive: 25 mm
  • Depth gauge: 25.0 mm
  • Head width: 33.0 mm
  • Head height: 25 mm
  • Material: Lacquered tubular steel construction, galvanized rectangular support
  • Vernier Nm: 1 Nm
  • Precision: +/- 3%
  • Test certificate: DIN EN ISO 6789-2:2017
  • Scale division: 10 Nm

Note: Technical changes and errors reserved.
