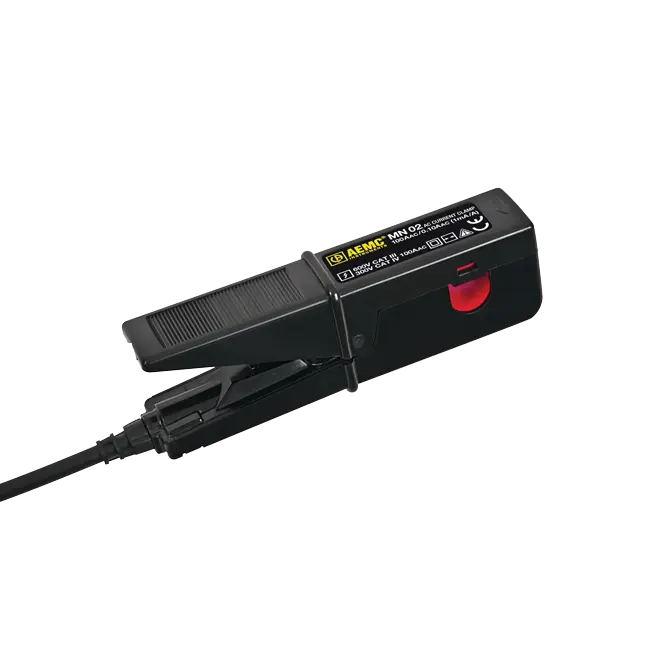

$ 398.20AEMC MN02 AC Current Probe Model MN02 (100A, 1mA/A, Lead, 1% Accuracy)(2129.20)
SKU: MN02 (Cat. #2129.20)
Model MN02 | Cat. #2129.20
AC Current Probe Model MN02
Specifications
- Maximum Conductor Size: 0.39" (10mm)
- Current Range: 100Arms AC
- Measurement Range: 50mA to 100A
- Output: 5ft (1.5m) lead with 4mm safety banana plug
- Transformation Ratio: 1000/1
- Output Signal: 1mA/A AC (100mA @ 100A)
- Accuracy 50/60Hz: 1% R ± 0.02A with 1Ω load
- Frequency Range: 48 to 10kHz
- Phase Shift At 50Hz: 3° with 1Ω load
- Open Secondary Voltage: ≤30V
- Load Impedance: 10Ω max
- Overload: 170A for 10 min ON, 30 min OFF
- Dimensions (H x W x D): 4.43 x 1.48 x 1.02” (112.5 x 37.5 x 26mm)
- Operating Temperature: 14° to +122°F (-10° to +50°C)
- Storage Temperature: -40° to +176°F ( -40° to +80°C)
- Operating Humidity: 90% RH
- Pollution Degree: 2
- Ingress Protection (Ip): IP40
- EMC: EN 61326-1
- Safety Compliance: EN/IEC 61010-1 600V CAT III, EN/IEC 61010-032
- Weight: 0.41 lb (0.19 kg)
