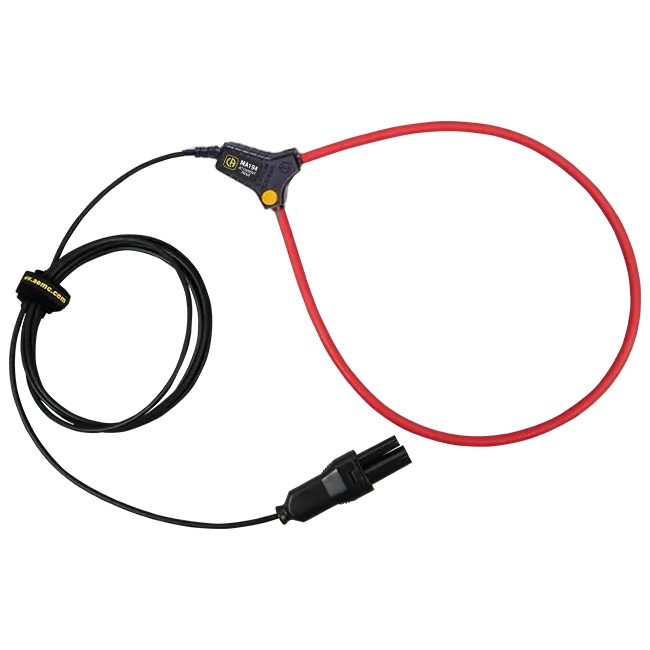

AEMC MA194-24-BK MiniFlex® Sensor Model MA194-24-BK for Models 3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series Replaces Cat #2140.78 (2140.80)

SKU: MA194-24-BK (Cat. #2140.80)

This combination does not exist.

AEMC Instruments

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

Model MA194-24-BK | Cat. #2140.80

MiniFlex ® Sensor Model MA194-24-BK (Replaces Cat. #2140.78)

Clamping Diameter: 24 in (609 mm)
Current Range: 3000 AAC
Measurement Range: 0.1 to 3000 AAC (10,000 A peak)
Lead Length: 10 ft (3 m)
Output Termination: Proprietary connector
Accuracy (Typical): 1%
Power Source: N/A
Compatibility: AEMC PowerPads and PELs (limited range with models 8220, 8230, 8435)
Operating Temperature: (14 to +131) °F (-10 to +55) °C; (10 to 85) % RH
Storage Temperature: (-40 to +158) °F (-40 to +70 ) °C; (10 to 90) % RH
Dimensions: (4 x 2.5 x 1.1) in (103 x 63 x 28) mm
Pollution Degree: 2
Protection: IK 04, IP40
Safety Compliance: IEC 61010-1, EN/IEC 61010-2-032, 1000 V CAT III, 600 V CAT IV
Weight: 0.12 lb (0.05 kg)

Brand

AEMC
