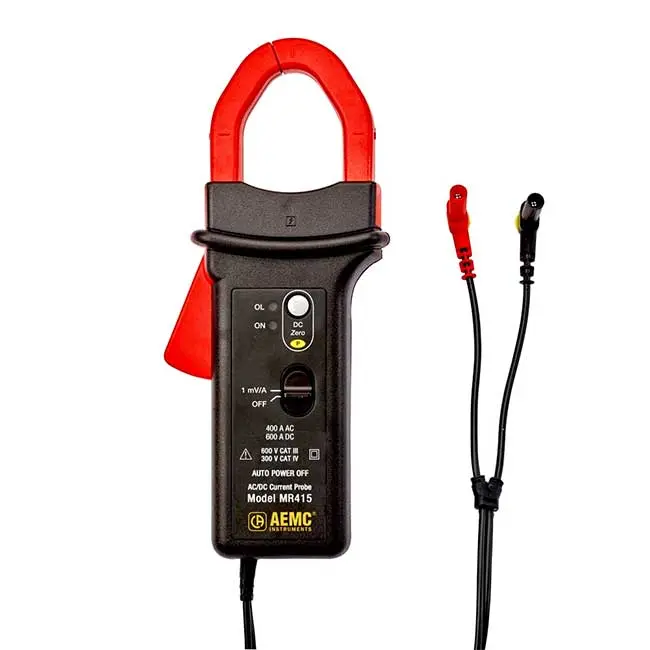

AC/DC Current Probe Model MR415 (Replaces Cat #1200.70 - Model MR410)

The MR415 is a hall effect current probe with 1 range designed for DMM, Data loggers and Power Analyzers. The probe has a 5 ft (1.5m) lead terminated by 4mm safety banana plugs and can measures up to 400AAC and 600ADC. The probe is powered by a 9V battery or by a standard 5V external power supply via a micro-USB connector (not supplied).

The instrument's design includes internal temperature compensation.

Specifications

• Maximum Conductor Size: Cables: One 1.18” (30mm) or two .94” (24mm) Bus Bar: One 1.97 x .39” (50 x 10mm) or two 1.23 x .39” (31.5 x 10mm) or three 0.98” x 0.31” (25 x 8mm)
• Current Range: 0.5 to 400A AC , 600A DC
• Output Signal: 1mV/A via a 5ft (1.5m) lead with 4 mm safety banana plug
• Accuracy 50/60Hz: ≤2% @ 400A
• Frequency Range: DC to 30kHz (-3dB) (depending of current value)
• Phase Shift At 50Hz: ≤1.5°@ 400A
• Load Impedance: >1MΩ and ≤100pF
• Overload: 3000A DC or 1000A AC continuous for < 1kHz
• Zero Adjust: Automatic on both ranges
• Power Supply: 9V alkaline Battery (NEDA 1060A, 6LR61) or 5V DC Micro-USB type B
• Battery Life: 50H typical
• Low Battery Indication: Green LED blinking
• Overload Indication: Red LED on when measurement > than selected range
• Dimensions (H x W x D): 8.82 x 3.82 x 1.73” (224 x 97 x 44mm)
• Operating Temperature: 14° to +131°F (-10 to +55°C)
• Storage Temperature: -40° to +176°F (-40 to +80°C)
• Relative Humidity: Up to 85% @ 35°C
• Ingress Protection (Ip): IP 40
• EMC: EN 61326-1
• Safety Compliance: IEC 61010-1, EN 61010-2-32, Pollution Degree 2, 600V CAT III
• Weight: 0.98 lb (0.44 kg)
