Cable coupler MC4  with barrel crimp contacts

Renewable Energy | Solar Photovoltaic

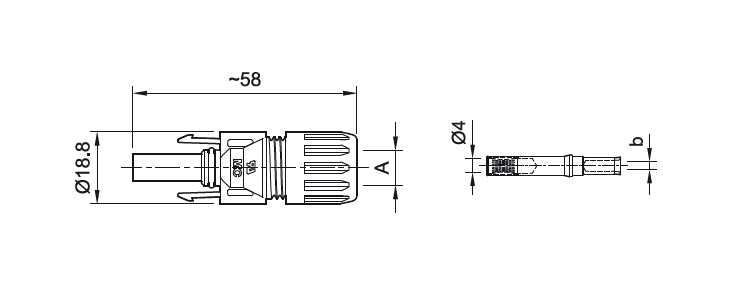

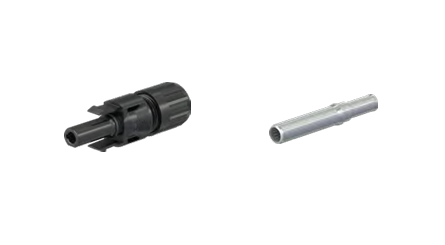

Female and male cable coupler MC4

Female and male cable coupler as individual part with barrel crimp contacts  (including insulating part) • Snap-in lock • In accordance with NEC 2020, requires a tool to open • Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughPV-KBT4... PV-KST4... • Also available as ready made leads out the entire service life of the plug connector • Tried and tested plug connectors, over 15 years of experience in the field • Available for assembly with cross- sections up to 6 AWG • Mating compatibility with the entire MC4 and MC4-Evo 2 families of connectors • Leads made to customer’s  specifications available upon request

Technical data

• Connector system: Ø 4 mm
• Rated voltage:
• • 1500 V DC (UL)
  • 1000 V DC (CSA)
• Rated current UL:
• • 30 A (14 AWG)
  • 35 A (12 AWG)
  • 50 A (10 AWG)
  • 70 A (8 AWG)
  • 95 A (6 AWG)
• Ambient temperature range: -40 °C ... +85 °C
• Degree of protection,
• • mated: IP65, IP68 (1 h / 1 m)
  • unmated: IP2X
• Overvoltage category / Pollution degree CATIII / 3
• Contact resistance of plug connectors: ≤ 0.25 mΩ
• Safety class: 1500 V DC: 0
• Contact system: MULTILAM
• Type of termination: Crimp (barrel crimp)
• Contact material: Copper, tin plated
• Insulation material: PC / PA
• Locking system (UL): Locking type, requiring tool
• Flame class: UL94-V0
• Ammonia resistance (acc. to DLG): yes
• Salt mist spray test, degree of severity 6: yes
• UL recognized component, in accordance with UL 6703: E343181
• CSA certified, in accordance with UL6703  (8 AWG version only): 250725
•
