AEMC 6611 Phase & Motor Rotation Meter Model 6611 (2121.90)
SKU: 2121.90 | 6611
Replacement for Model 6609

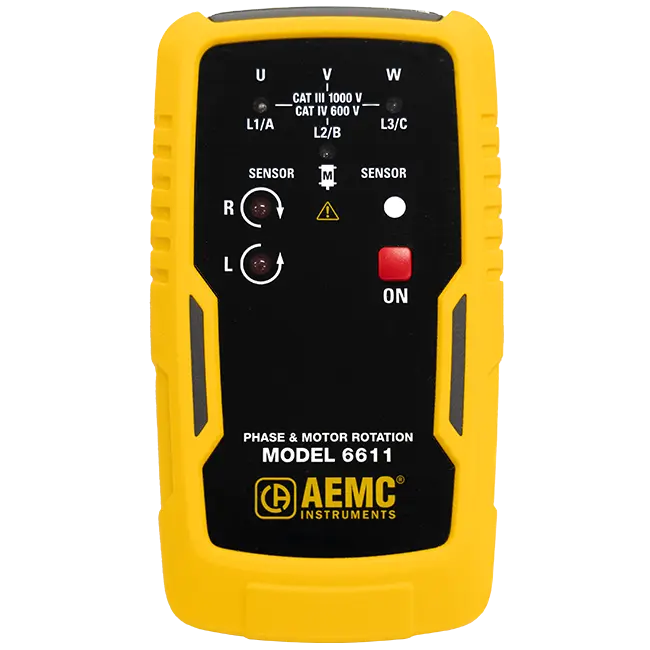

Phase & Motor Rotation Meter Model 6611

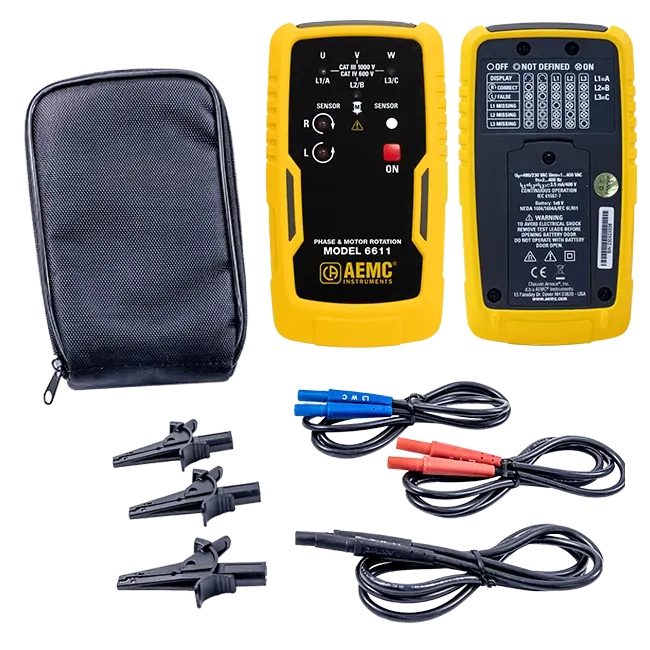

Model 6611 - Cat. #2121.90: Includes a Soft carrying case, (3) 4ft color-coded test leads (red/black/blue), (3) alligator clips (black) and a user manual.
The Phase Rotation Meter Model 6611 is a compact and rugged meter designed to identify phase rotation on 3-Phase systems and identify live and open/de-energized phases. Ideal for installing rotating machinery or motors, and for checking generator output.
The Model 6611 is also an ideal tool for measuring the proper rotation of motors, conveyors, pumps and other electrical devices interconnected on the power line system before installation where direction of rotation is dependent on proper phase hook-up.
Specifications
| Phase Rotation Connection Method | Direct Connection with Color-coded Leads |
| Rotating Field Connection Method | Non-Contact Static Induction |
| Operating Voltage | (1 to 440) VAC between phases Leads Connected: (40 to 600) VAC between phases |
| Voltage Indication (L1, L2, and L3 indicator lights) | (120-440) VAC between phases |
| Operating Frequency | (2 to 400) Hz |
| Test Current (per phase) | < 3.5 mA |
| Phase Rotation Indicator (L1, L2, and L3 indicator lights) | LEDs for Left or Right Rotation light up from 100 V (phase0neutral voltage) |
| Power Supply | (1) 9 V Alkaline Battery (Included) |
| Dimensions | (5.1 x 2.7 x 1.3) in (130 x 69 x 32) mm |
| Weight | 6 oz (170 g) |
| Operating Temperature | (32 to 104) °F (0 to 40) °C |
| Storage Temperature | (-4° to 122) °F (-20 to 50) °C |
| Relative Humidity | < 80 % |
| Safety Compliance | IEC 61010-1; 600V CAT III |
| Ingress Protection | IP40 |
| CE Approved | Yes |
User Manuals
Model 6611 – English and Español
Datasheets
Model 6611 - English
Model 6611 - Español
Brochures
Phase Rotation Meters 6611 & 6612 - English
AEMC® Instruments Product Line Brochure
| Brand | AEMC |
