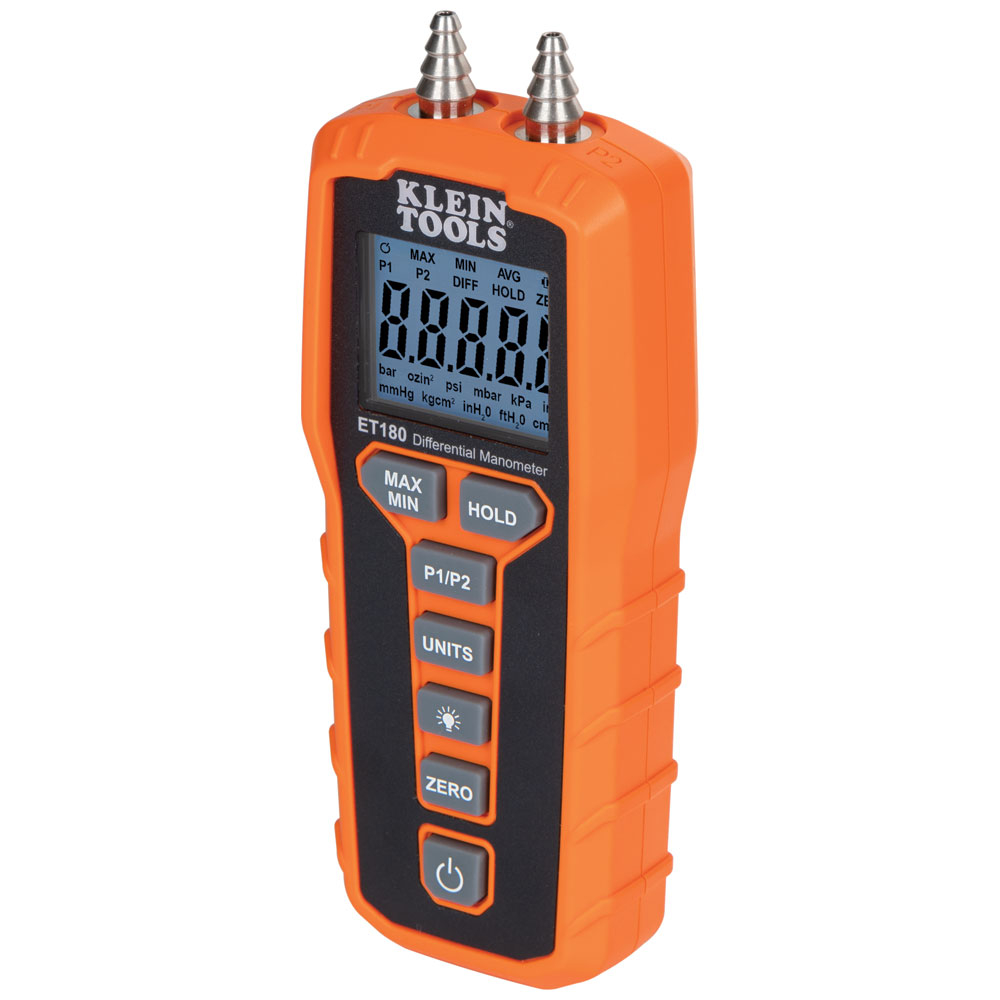

Klein Digital Differential Manometer (ET180)

https://www.etisupply.com/web/image/product.template/1118984/image_1920?unique=71889b2

SKU: ET180

  • Digital Manometer measures air and gas pressure for ports P1, P2, and differential
  • Range of +/- 60 inH2O and full scale accuracy of +/-1.5-Percent
  • Strong magnet on back for hands-free operation
  • Units measured: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O
  • Calculates minimum, maximum and average values
  • Large LCD is backlit for easy viewing in low light conditions
  • Auto-power off feature conserves battery life
  • Hold button locks current reading on the display
  • Silicon tubing, 3 x AAA batteries, and storage pouch included

This product has no valid combination.

Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

ET180

Digital Differential Manometer

The ET180 Digital Differential Manometer from Klein Tools measures air and gas pressure for port 1, port 2, and measures the differential between the ports. Easily toggle between units: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O. Large, backlit LCD shows minimum, maximum and average values. Magnet on back for hands-free operation.

Specifications

  • Measurement Units: bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, inH2O, ftH20, and cmH2O
  • Display: Backlit LCD
  • Application: Measure Static and Differential Pressure
  • Accuracy: +/-1.5% Full Scale
  • Material: ABS, Stainless Steel
  • Auto-Power Off: Yes
  • Standard: Conforms to EN 61326-1:2013; EN61326-2-3:2013; CE and UKCA Certified
  • Special Features: Magnet on Back of Housing
  • Internal Memory: —
  • Number of Ports: 2
  • Type: Differential Pressure
  • Pressure Measurement Range: +/- 60 inH2O
  • Modes: P1, P2, Differential
  • Connector Type: Tapered Stainless Steel Ports from 1/8'' to 5/15''
  • Low Battery Indicator: Yes
  • Batteries: 3 x AAA
  • Included: Manometer; 6.56' (2 m) x 1/8'' (3 mm) Inside Diameter Silicon Tubing; 3 x AAA Batteries; Pouch; Instruction Manual
  • Minimum Pressure Reading (wc): -60.0
  • Maximum Pressure (psi): 2.16 PSI
  • Temperature Range: 32° to 122° F (0° to 50° C)
  • Maximum Pressure Reading (wc): 60.0
  • Battery Type: Alkaline
  • Overall Height: 6.19 in (15.7 cm)
  • Weight: 0.45 lb
  • UPC: 092644693366

Additional Information

Warranty
Compliance

Warnings

  • Read, understand, and follow all instructions to ensure safe operation.
  • The meter is NOT insulated. Avoid contact with areas where energized conductive elements may be present. Shut off power to the area before starting measurements.
  • Always wear approved eye protection.

Brand Klein Tools
