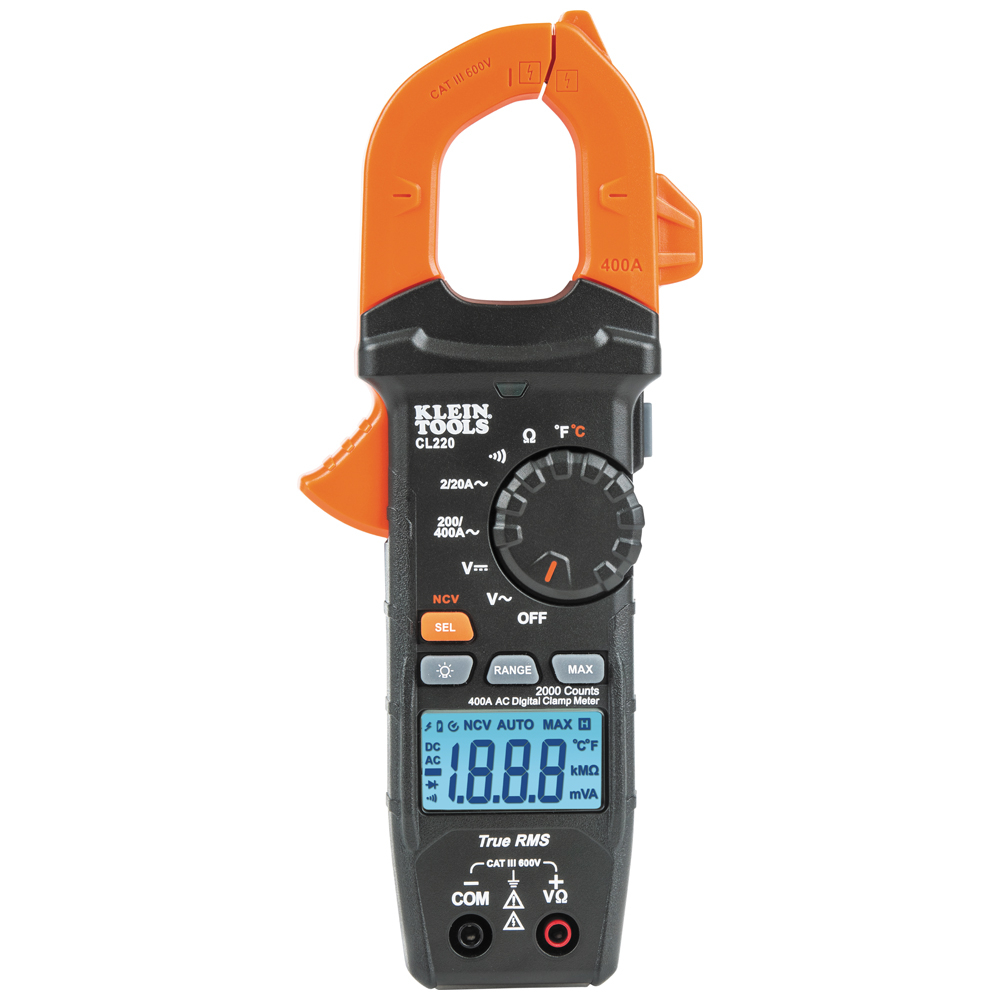

Klein Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp (CL220)

Price:

$ 74.97

Klein Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp (CL220)
  2. Shop
  3. Klein Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp (CL220)
Klein Digital Clamp Meter, AC Auto-Ranging 400 Amp (CL120)
Klein Digital Clamp Meter, AC Auto-Ranging 400 Amp (CL120)
$ 64.98
$ 64.98
Klein Digital Differential Manometer (ET180)
Klein Digital Differential Manometer (ET180)
$ 139.99
$ 139.99

Klein Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp (CL220)

https://www.etisupply.com/web/image/product.template/1118824/image_1920?unique=746fb6d

SKU: CL220

  • Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
  • Non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD for ease of viewing in low light
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
  • Measures temperature with a K-Type thermocouple probe
  • Auto-Range, Hold, Data Hold, and Max value
  • Auto-power off after 10 minutes to conserve battery life
  • Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
  • Low battery indicator and easily accessible battery compartment

$ 74.97 74.97 USD $ 74.97 $ 99.88

Not Available For Sale

($ 74.97 / Units)
  • Brand

This combination does not exist.

Klein Tools
Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

CL220

Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp

The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.

Specifications

  • Voltage: 600 V AC/DC
  • Batteries: 3 x AAA
  • Capacitance: —
  • Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
  • Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
  • Ingress Protection: —
  • Temperature Range: -40° - 1832°F (-40° - 1000°C)
  • Auto-Power Off: Yes
  • DC Voltage: 600 V
  • Frequency: —
  • Application: Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple
  • Display: 2000 Count Backlit LCD
  • Functions: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature
  • Current: 400 A AC
  • Ohms (Resistance): 20 MΩ
  • Drop Protection: 6.6' (2 m)
  • Included: Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
  • AC Voltage: 600 V
  • Material: ABS/Electronics
  • DC Micro-Amp: —
  • DC Polarity Indicator: Yes
  • Type: Auto Ranging TRMS Clamp with Temperature
  • Battery Type: Alkaline
  • Style: Clamp Meter
  • Overall Height: 3.8 cm
  • UPC: 092644692857

Additional Information

Warranty
Compliance

Warnings

  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not attempt to measure resistance or continuity on live circuits.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.

Brand Klein Tools
