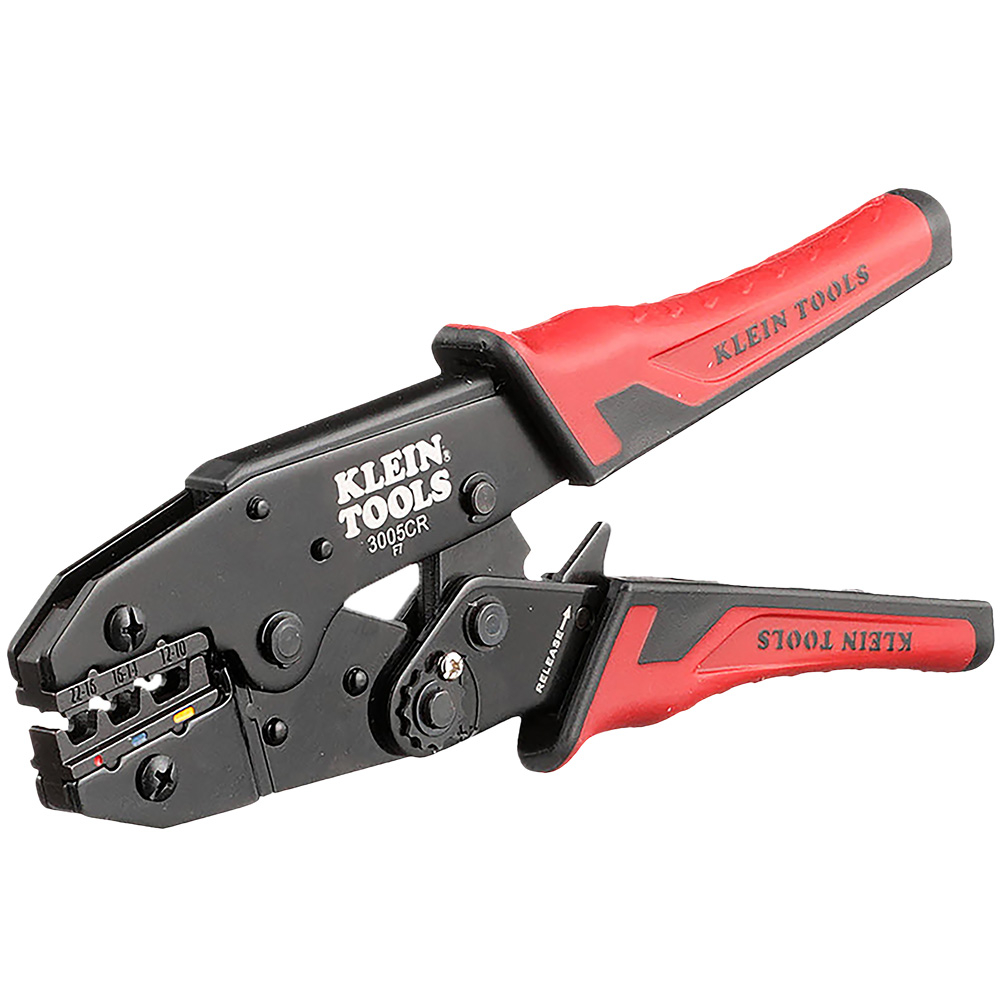

Klein Ratcheting Crimper, 10-22 AWG - Insulated Terminals (3005CR)

https://www.etisupply.com/web/image/product.template/1119801/image_1920?unique=44c55c5

SKU: 3005CR

  • Crimps insulated terminals onto 10-22 AWG stranded copper wire
  • Adjustable compound action design puts more crimping power into each squeeze
  • Three crimping cavities in one tool: 22–16 AWG (Red), 16–14 AWG (Blue) and 12–10 AWG (Yellow) terminals
  • Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
  • Unique cavity design provides consistent crimp from either side of the tool
  • Dial adjusts the amount of force applied to the crimp
  • Dual-material molded grips provide added comfort

$ 34.97 34.97 USD $ 34.97 $ 50.06

Not Available For Sale

($ 34.97 / Units)
  • Brand

This combination does not exist.

Klein Tools
Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

3005CR

Ratcheting Crimper, 10-22 AWG - Insulated Terminals

The full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.

Specifications

  • Type: Ratcheting Crimper
  • Handle Color: Red, Black
  • Special Features: 3 Crimping Cavities
  • Material: Steel
  • Application: Wire Crimping
  • Connector Type: Insulated
  • Cable Size: Front Cavity: 22-16 AWG Insulated Terminals; Mid Cavity: 16-14 AWG Insulated Terminals; Rear Cavity: 12-10 AWG Insulated Terminals
  • Cuts: Yes
  • Crimps: Yes
  • Style: Insulated Terminals
  • Handle Finish: Dual-Material
  • Strips: No
  • Weight: 1.3 lb
  • Overall Height: 0.09 in (0.2 cm)
  • Overall Length: 9 in (22.9 cm)
  • Overall Width: 3 in (7.6 cm)
  • UPC: 092644344008

Additional Information

Warranty
Compliance

Warnings

  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
