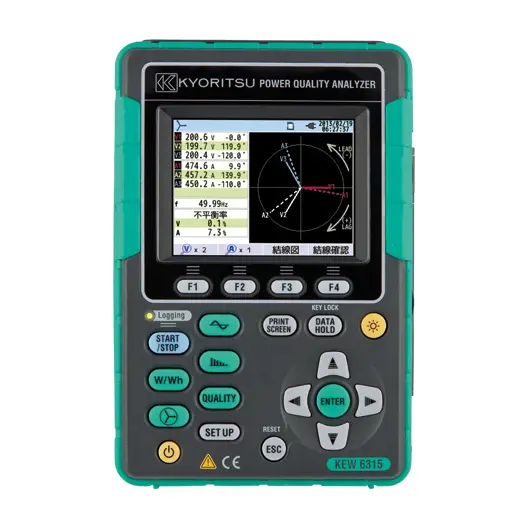

Kyoritsu 6315 Power Quality Analizer without Sensors [NA plug type]

$ 3,198.00 3198.0 USD $ 3,198.00

Brand

This combination does not exist.

Add to Cart

Kyoritsu

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Description
Specifications

POWER QUALITY ANALYZER

KEW 6315

Simultaneous Power & Power quality measurements

Simultaneous Power & Power quality measurements
Helpful support functions
Measurement with high accuracy
Remote monitoring on PC and Android device
Various Clamp Current Sensors
Energy consumption check on site
IEC 61010-1 CAT Ⅳ 300V, CAT Ⅲ 600V, CAT Ⅱ 1000V

Product Overview

Simultaneous Power & Power quality measurements
Power/Harmonics/Waveform/Power quality are recorded at all CHs
(Voltage:3ch,Current 4ch)
Helpful support functions
Quick Start Guide,Wiring check and Sensor detection for easy and reliable measurement
Measurement with high accuracy
Guaranteed accuracy: ±0.3%rdg(energy),
　　　　　　　　　　 ±0.2%rdg(voltage/current)
Complies with the International Standard
IEC 61000-4-30 Class S and the European Standard EN50160
Energy consumption check on site
Trend and demand graphs for easy recognition
TFT color display with high resolution
IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V / CAT Ⅱ 1000V

KEW Smart 6315

Free Android software "KEW Smart 6315" is available on "Google Play Store"

Please search "KEW Smart" in Google Play Store.

Communication charge may be incurred separately to download application.

Supporting Android Ver. 8 to 15
WVGA (800 × 480) resolution or higher

Specification

Power Quality Analyzer
Wiring connections	1P2W, 1P3W, 3P3W, 3P4W
Measurements and parameters	Voltage, Current, Frequency, Active power, Reactive power, Apparent power,Active energy, Reactive energy, Apparent energy, Power factor (cos θ), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption, Transients/Over voltage, Inrush current, Unbalance rate), Capacitance calculation for PF correction unit, Flicker
Voltage (RMS)
	Range	600.0 / 1000V
Accuracy	600.0V Range : (sine wave 40 to 70Hz) 　10% to 150% against 100V or more of nominal V : Nominal V±0.5% 　Out of above range : ±0.2%rdg±0.2%f.s. 1000V Range : ±0.2%rdg±0.2%f.s.(sine wave 40 to 70Hz)
Allowable input	1 to 120% of each range (rms). 200% of each range (peak)
Display range	0.15 to 130% of each range
Crest factor	3 or less
Sampling speed of Voltage transient	24µs
Current (RMS)
	Range	8128/8135 ( 50A type ) : 5000mA / 50.00A / AUTO 8127 ( 100A type ) : 10.00 / 100.0A / AUTO 8126 ( 200A type ) : 20.00 / 200.0A / AUTO 8125 ( 500A type ) : 50.00 / 500.0A / AUTO 8124/8130 ( 1000A type ) : 100.0 / 1000A / AUTO 8146/8147/8148 ( 10A type ) : 1000mA / 10.00A / AUTO 8133 ( 3000A type ) : 300.0 / 3000A / AUTO
Accuracy	±0.2%rdg±0.2%f.s. + accuracy of clamp sensor (sine wave, 40 to 70Hz)
Allowable input	1 to 110% of each range (rms). 200% of each range (peak)
Display range	0.15 to 130% of each range
Crest factor	3 or less
Active power
	Accuracy	±0.3%rdg±0.2%f.s. + accuracy of clamp sensor (power factor 1, sine wave, 40 to 70Hz)
Influence of power factor	±1.0%rdg (reading at power factor 0.5 against power factor 1)
Frequency meter range	40 to 70Hz
Power supply (AC Line)	AC100 to 240V / 50 to 60Hz / 7VA max
Power supply (DC battery)	Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6 Battery life approx. 3h (LR6, Backlight OFF)
Internal memory	FLASH memory (4MB)
PC card interface	SD card (2GB)
Communication interface	USB, Bluetooth® 5.0
Display	320 × 240 (RGB) Pixel, 3.5inch color TFT display
Display update period	1 sec
Applicable standards	IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V / CAT Ⅱ 1000V Pollution degree 2, IEC 61010-2-030, IEC 61010-031, IEC 61326, EN 50160 IEC 61000-4-30 Class S, IEC 61000-4-15, IEC 61000-4-7
Temperature and humidity range	23±5ºC, less than 85% RH (without condensation)
Operating temperature and humidity range	0 to +45ºC, less than 85% RH (without condensation)
Storage temperature and humidity range	-20 to +60ºC, less than 85% RH (without condensation)
Power supply (AC Line)	AC100 to 240V / 50 to 60Hz / 7VA max
Power supply (DC battery)	Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6 Battery life approx. 3h (LR6, Backlight OFF)
Dimension	175(L) × 120(W) × 68(D) mm
Weight	Approx. 900g
Accessories	7141B (Voltage test lead set) 7170(Power cord[EU]) or 7240(Power cord[UK]) 7219 (USB cable) 8326-02 (SD card [2GB]) 9125 (Carrying case) Input terminal plate × 6, Quick manual, LR6× 6
Optional Accessories	8124/8125/8126/8127/8128 (Load current Clamp Sensor) 8130/8133()/8135() (Flexible clamp sensor) 8146/8147/8148 (Leakage and Load current clamp sensor) 8312 (Power supply adapter) 9132 (Magnetic carrying case)

Please download “KEW Windows for KEW 6315(software)” from here.

* The KEW 6315 can be used with firmware versions V1.50 or later for the KEW 8133 and V3.00 or later for the KEW 8135.

Please check here for the latest firmware.

Set Model

*Included accessories for below models are same with above-mentioned.

KEW 6315-01
- 8125 (500A: φ40mm) × 3
- Carrying case: 9125
KEW 6315-03
- 8130 (1000A : φ110mm) × 3
- Carrying case: 9135
KEW 6315-04
- 8130 (1000A : φ110mm) × 4
- Carrying case: 9135
KEW 6315-05
- 8133 (3000A : φ170mm) × 3
- Carrying case: 9135
