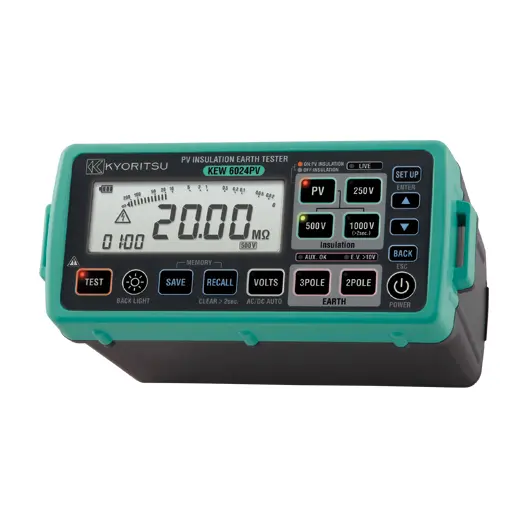

PV INSULATION EARTH TESTER

KEW 6024PV

Accurate measuring of Insulation resistance even if the PhotoVoltaic (PV) arrays are generating power

Accurate measuring of Insulation resistance even if the PhotoVoltaic (PV) arrays are generating power
No need to short circuit the PV arrays or test at night to measure the Insulation resistance
Earth resistance measurements with Voltamperometric method at 3 and 2 pole
Waterproof design, ideally suited to work in bad weather condition
Memory function up to 1000 data
Luminescence buttons and large Backlight display
Elapsed time, after starting a measurement, is displayed with the measured values
Compact and light weight
Test probe with a remote control switch is supplied as standard accessory
Auto-discharge with voltage display
Special analysis software "KEW Report" is available

Specification

PV Insulation resistance*
	Test voltage	500V	1000V
Range(Auto-ranging)	20.00/200.0/2000MΩ
Measuring range	0.00 to 1.50MΩ 200.1 to 2000MΩ	1.51 to 200.0MΩ	0.00 to 1.50MΩ 1001 to 2000MΩ	1.51 to 1000MΩ
	Accuracy	±5%rdg±6dgt	±1.5%rdg±5dgt	±5%rdg±6dgt	±1.5%rdg±5dgt
Open circuit voltage	1 to 1.2times
Short circuit current	1.5mA or less
Insulation resistance
	Test voltage	250V	500V	1000V
Range(Auto-ranging)	20.00/200.0/2000MΩ
Rated current	1.0 to 1.2mA
0.25MΩ	0.5MΩ	1MΩ
First effective measuring range	1.51 to 100.0MΩ	1.51 to 200.0MΩ	1.51 to 1000MΩ
	Mid-scale value	50MΩ
Accuracy	±1.5%rdg±5dgt
Second effective measuring range	1.20 to 1.50MΩ 100.1 to 2000MΩ	1.20 to 1.50MΩ 200.1 to 2000MΩ	1.20 to 1.50MΩ 1001 to 2000MΩ
	Accuracy	±5.0%rdg±6dgt
Open circuit voltage	1 to 1.2times
Short circuit current	1.5mA or less
Earth resistance
	Measuring range(Auto-ranging)	20.00/200.0/2000Ω
Accuracy	±3.0%rdg±0.1Ω (20Ω range) ±3.0%rdg±3dgt (200/2000Ω range)
Voltage measurement
	Measuring range	AC 5 to 600V (45 to 65Hz) DC ±5 to 1000V
Accuracy	±1.0%rdg±4dgt
General
	Applicable Standards	IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2 IEC 61010-2-030, IEC 61010-2-034, IEC 61010-031, IEC 60529(IP54) IEC 61557-1,2,5,10, IEC 61326-1,2-2
Power source	LR6(AA)(1.5V) × 6
Dimension	84(L) × 184(W) × 133(D)mm
Weight	Approx. 900g (including batteries)
Accessories	7196B(Test leads with remote control switch) 7244A(Test lead with alligator clip) 8017(Extension prod long) 8072(CATⅡStandard prod) 8212-USB(USB adapter) 9156A(Soft case with shoulder strap) LR6(AA) × 6, Instruction manual
Optional Accessories	7243A(L-shaped probe) 7245A(Precision measurement cord set) 8016(Hook type prod)

Please download “KEW Report(software)” from here.

*6024PV supports PV systems up to 1000V.
