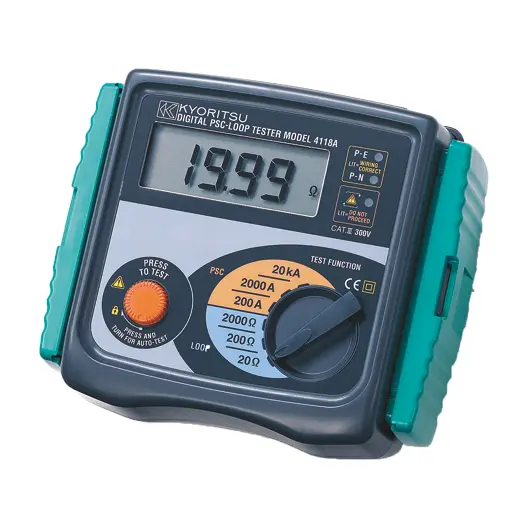

Kyoritsu 4118A Digital LOOP/PFC/PSC Tester [Operating Volt: 230V+10~15% 50Hz]

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

LOOP/PFC/PSC TESTER

MODEL 4118A

Custom microprocessor controlled for highest accuracy and reliability

Custom microprocessor controlled for highest accuracy and reliability
3 LEDs for checking correct wiring status
15mA LOOP measurement:LOOP impedance 2000Ω range measurement is carried out with low test current (15mA)
The current will not cause tripping out involved RCD even the one with the lowest nominal differential current (30mA)
Direct reading of Prospective Short Circuit Current (PSC)
Measure low loop resistances(resolution of 0.01Ω)
Automatic lock-out if test resister overheats
Large custom digital display readout
Visual indication of reversed phase and neutral wiring at socket
Designed to IP54 Rating

Front Cover

Loop impedance ranges	20/200/2000Ω
Loop impedance accuracy	±2%rdg±4dgt
AC test current	20Ω 25A 200Ω 2.3A 2000Ω 15mA
AC test period	20Ω (20ms) 200Ω (40ms) 2000Ω (280ms)
PSC ranges	200A (2.3A 40ms) 2000A (25A 20ms) 20kA (25A 20ms)
PSC ranges accuracy	Consider accuracy of Loop impedance
Voltage	110to260V ±2%rdg±4dgt
Operating voltage	230V+10% -15% (195 to 253V) 50Hz
Applicable standard	IEC 61010-1 CAT Ⅲ 300V Pollution Degree 2 IEC 61557-1,-3 IEC 61010-2-031, IEC 60529 (IP54)
Dimensions	167(L) × 186(W) × 89(D)mm
Weight	Approx. 750g
Accessories	Molded plug test lead* 7121B (Distribution board test leads) 9121 (Shoulder Strap) 9147 (Cord case) Instruction Manual

* 7123(AU): Australian plug

7124(UK): Britich plug(13A)

7125(EU): European SHUKO plug

7126(SA): South african plug
