EARTH RESISTANCE & RESISTIVITY TESTER

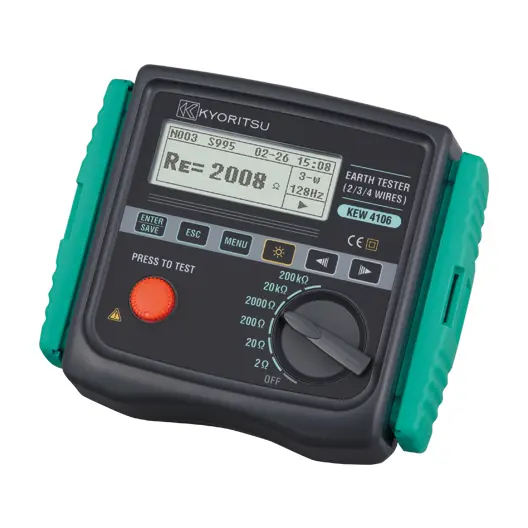

KEW 4106

Earth Resistance & Resistivity Tester

Earth resistance measurement with six ranges covering measurements from 0.001 Ω to 200 kΩ
Earth resistivity (ρ) measurement is automatically calculated after having set the distance between Auxiliary Earth Spikes (Wenner method)
Automatic and Manual selection of the Test Current Frequency in four bands of 94/105/111/128Hz
In Automatic mode KEW 4106 will select the most suitable Frequency
Advanced Filtering method (based on FFT Fast Fourier Transform) reduces noise interference for obtaining stable measurements
Up to 800 measurement results can be saved in the memory and recalled on the display
The stored results can be transferred to a PC by using USB adapter (MODEL 8212-USB) and the special software "KEW Report"
Robust design with IP54 protection

Specification

Function	Range	Resolution	Measuring range	Accuracy
Earth resistance Re (Rg at ρ measurement)	2Ω	0.001Ω	0.03 to 2.099Ω	±2%rdg±0.03Ω
20Ω	0.01Ω	0.03 to 20.99Ω	±2%rdg±5dgt (*1)
200Ω	0.1Ω	0.3 to 209.9Ω
2000Ω	1Ω	3 to 2099Ω
20kΩ	10Ω	0.03 to 20.99kΩ
200kΩ	100Ω	0.3 to 209.9kΩ
Auxiliary earth resistance Rh, Rs				8% of Re+Rh+Rs
Earth resistivity ρ	2Ω	0.1 to 1Ω·m Auto-ranging	0.2 to 395.6Ω·m	ρ=2×π×a×Rg (*2)
20Ω	0.2 to 3956Ω·m
200Ω	20 to 39.56kΩ·m
2000Ω	0.2 to 395.6kΩ·m
20kΩ	2.0 to 1999kΩ·m
200kΩ
Series interference voltage Ust (A.C only) (*3)	50V	0.1V	0 to 50.9Vrms	±2%rdg±2dgt (50/60Hz)
±3%rdg±2dgt (40 to 500Hz)
Frequency Fst	Auto-ranging	0.1Hz 1Hz	40Hz to 499.9Hz	±1%rdg±2dgt
Measuring method	Earth resistance: Fall-of-potential method (currents and voltages measured via the Probes) Measurement method of Earth Resistivity (ρ): Wenner 4-pole method Series interference voltage (earth voltage) RMS Rectifier (between the E-S Terminals)
Memory capacity	800 data
Communication Interface	Model 8212-USB Optical Adapter
LCD	Dot-matrix 192×64 monochrome
Over-range Indication	"OL"
Overload Protection	between E-S(P) and between E-H(C) terminals AC280V / 10 sec.
Applicable standards	IEC 61010-1 CAT Ⅲ 300V / CAT Ⅳ150V Pollution degree 2 IEC 61010-031, IEC 61557-1, 5, IEC 61326-1 (EMC), IEC 60529 (IP54)
Power source	DC12V : sizeAA manganese dry battery (R6) × 8 (Auto power off: Approx. 5 minutes)
Dimension	167(L) × 185(W) × 89(D) mm
Weight	Approx. 900g (including batteries)
Accessories	7229A (Earth precision measurement), 7238A (Simplified measurement test leads), 8032 (Auxiliary earth spikes [2 spiks/set])×2 sets (4 spikes in total), 8200-04 (Cord reel [4 pcs])×1 set, 8212-USB (USB adapter), 8923(Fuse [0.5A/600V]) × 1 (included), 1 (spare), 9121 (Shoulder strap), 9125 (Carrying case), R6 × 8, Instruction manual

Please download “KEW Report(software)” from here.

*1 Auxiliary earth resistance is 100Ω with Rk correction

*2 Depending on the measured Rg. Interval [a] between auxiliary earth spikes is 1.0 to 30.0m

*3 This instrument is NOT designed to measure line voltages on commercial powers.
