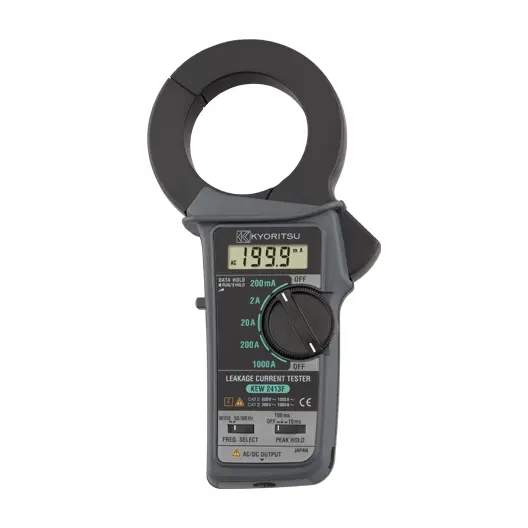

Kyoritsu 2413F Digital AC Leakage Current Clamp Meter (jaw: 68mm dia.)

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

LEAKAGE CLAMP METER

KEW 2413F

Large transformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement

Large transformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement
Frequency filter switch to eliminate the effect of the harmonics
2 way analog output terminal
Minimum resolution 0.1mA

AC A (50/60Hz)	200mA/2/20/200/1000A ±1.5%rdg±2dgt (200mA/2/20A) ±2%rdg±2dgt (200A 0 to 500A) ±5.5%rdg (501 to 1000A)
AC A (WIDE)	200mA/2/20/200/1000A ±1%rdg±2dgt [50/60Hz], ±3%rdg±2dgt [40Hz to 1kHz](200mA/2/20A) ±1.5%rdg±2dgt [50/60Hz], ±3.5%rdg±2dgt [40Hz to 1kHz] (200A/0 to 500A) ±5%rdg [50/60Hz], ±10%rdg [40Hz to 1kHz] (501 to 1000A)
Conductor size	φ68mm max.
Frequency response	40Hz to 1kHz
Effect of external stray magnetic field φ15mm 100A	10mA AC max.
Output	Waveform : AC200mV against the maximum value of each range (1000A range is 100mV) Recorder : DC200mV against the maximum value of each range (1000A range is 100mV)
Applicable standards	IEC 61010-1 CAT III 300V IEC 61010-2-032
Power source	6F22 (9V) × 1 *Continuous measuring time: Approx. 60 hours
Dimension	250(L) × 130(W) × 50(D)mm
Weight	Approx. 570g (including battery)
Accessories	9094 (Carrying Case) 6F22 × 1 Instruction Manual
Optional Accessories	7073 (2WAY Output Cord)

Brand

Kyoritsu
