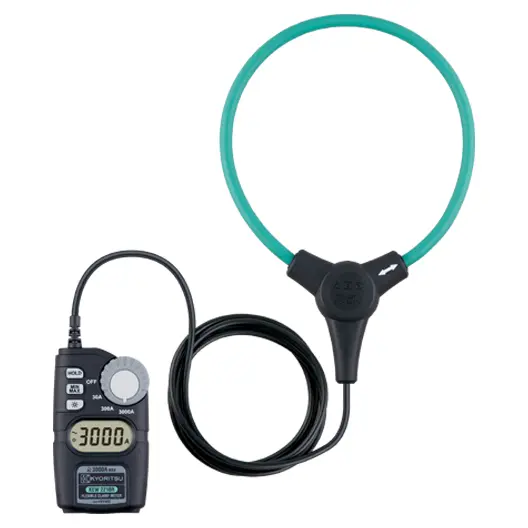

Kyoritsu 2210R Digital AC Flexible Clamp Meter with True RMS (jaw: 150mm dia.)

Price:

$ 364.00

Kyoritsu 2210R Digital AC Flexible Clamp Meter with True RMS (jaw: 150mm dia.)
  2. Shop
  3. Kyoritsu 2210R Digital AC Flexible Clamp Meter with True RMS (jaw: 150mm dia.)
Kyoritsu 2204R Digital AC Flexible Clamp Meter with True RMS (jaw: 70mm dia.)
Kyoritsu 2204R Digital AC Flexible Clamp Meter with True RMS (jaw: 70mm dia.)
$ 364.00
$ 364.00
Kyoritsu 2413F Digital AC Leakage Current Clamp Meter (jaw: 68mm dia.)
Kyoritsu 2413F Digital AC Leakage Current Clamp Meter (jaw: 68mm dia.)
$ 684.00
$ 684.00

Kyoritsu 2210R Digital AC Flexible Clamp Meter with True RMS (jaw: 150mm dia.)

https://www.etisupply.com/web/image/product.template/1058275/image_1920?unique=b43e63a

$ 364.00 364.0 USD $ 364.00

Not Available For Sale

($ 364.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

AC CLAMP METER

KEW 2210R

Flexible and light weight clamp sensor

  • Flexible and light weight clamp sensor
  • Wide reading range up to 3000A
  • True RMS
  • MIN / MAX function
  • Backlight LCD display
  • IEC 61010-1 CAT Ⅳ 600V / CAT Ⅲ 1000V
  • Minimum resolution 0.01A

Specification

AC A

Range30.00/300.0/3000A
Accuracy±3%rdg±5dgt [45 to 500Hz]
(At the center of the circle formed by the flexible sensor)
Crest factor
(CF)		Full scale CF<1.6, half scale<3.2
Effective input crest values are √2 times of the max values of each range.
Conductor sizeφ150mm max.
Influence of Conductor positionAdditional ±3% (max.) depending on the distance from the center position
Overload protection5000A AC for 10 seconds
Applicable standardsIEC 61010-1, IEC 61010-2-032
CAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree 2
IEC 61326-1(EMC) , IEC 60529 IP40 , EN50581(RoHS)
Operating temperature
and humidity range		0 to +50℃,relative humidity 80% or less(no condensation)
Storage temperature
and humidity range		-10 to +60℃,relative humidity 70% or less(no condensation)
Power sourceR03 / LR03(AAA)(1.5V)×2
※Continuous measuring time：Approx.120hours
(Auto power off：Approx.15 minutes)
Dimension120(L)×70(W)×26(D)：Display unit
φ8.5mm approx.：Cable diameter
1.8m : Cable length
WeightApprox. 300g (including batteries)
Accessories9174 (Carrying case)
LR03(AAA)×2, Insruction manual

Accessories

Catalog & Document

Brand Kyoritsu
