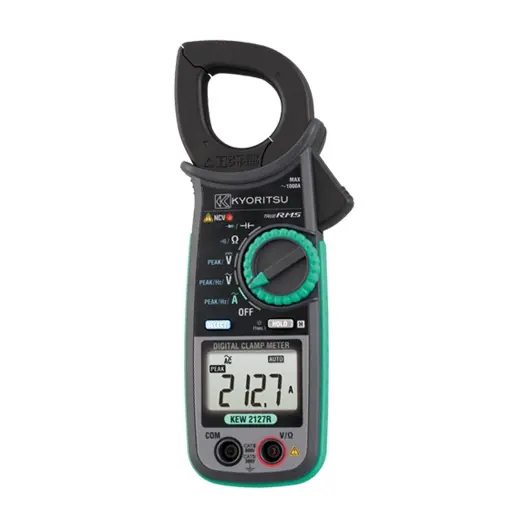

Kyoritsu 2127R Digital AC Clamp Meter with True RMS (jaw: 33mm dia.)

Price:

$ 192.00

Kyoritsu 2127R Digital AC Clamp Meter with True RMS (jaw: 33mm dia.)
  2. Shop
  3. Kyoritsu 2127R Digital AC Clamp Meter with True RMS (jaw: 33mm dia.)
Kyoritsu 2117R Digital AC Clamp Meter with True RMS (jaw: 33mm dia.)
Kyoritsu 2117R Digital AC Clamp Meter with True RMS (jaw: 33mm dia.)
$ 154.00
$ 154.00
Kyoritsu 2200 Digital AC Clamp Meter (jaw: 33mm dia.)
Kyoritsu 2200 Digital AC Clamp Meter (jaw: 33mm dia.)
$ 122.00
$ 122.00

Kyoritsu 2127R Digital AC Clamp Meter with True RMS (jaw: 33mm dia.)

https://www.etisupply.com/web/image/product.template/1058271/image_1920?unique=b43e63a

$ 192.00 192.0 USD $ 192.00

Not Available For Sale

($ 192.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

AC CLAMP METER

KEW 2127R

Fully Safety jaw

  • Fully Safety jaw
  • Ergonomic over-molded body gives convenient one-hand operation
  • Large easy-to-read display with 0.01A resolution
  • Accurate reading with True RMS 60/600/1000A auto-ranging
  • Peak Hold for inrush current
  • Large display with backlight
  • Capacitance and Diode test
  • Long battery life
  • Safety standard IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V

Specification

AC A60.00/600.0/1000A (Auto-ranging)
±1.5%rdg±4dgt [45 to 65Hz]
±2.0%rdg±5dgt [40Hz to 1kHz]
AC V60.00/600.0V (Auto-ranging)
±1.0%rdg±2dgt [45 to 65Hz] (600V)
±1.5%rdg±4dgt [40Hz to 1kHz] (60/600V)
DC V60.00/600.0V (Auto-ranging)
±1.0%rdg±3dgt (60V)
±1.2%rdg±3dgt (600V)
Ω600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ(Auto-ranging)
±1.0%rdg±5dgt (600Ω)
±2.0%rdg±3dgt (6/60/600kΩ)
±3.0%rdg±3dgt (6MΩ)
±5.0%rdg±3dgt (40MΩ)
Continuity buzzer600Ω (Buzzer sounds below 90Ω)
Capacitance test1.000/10.00/100.0μF
±3.0%rdg±15dgt(1μF)
±3.0%rdg±10dgt(10/100μF)
Diode test2.000V ±4%rdg±5dgt
Open-circuit voltage:<3.5V
Hz999.9Hz/9.999kHz (Auto-ranging)
±0.1%rdg±3dgt
(Input sensitivity Current:more than 4A Voltage:more than 2V)
Conductor sizeφ33mm max.
Applicable standardsIEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033,
IEC 61326-2-2(EMC), IEC 60529 IP40, EN 50581(RoHS)
Power sourceR03/LR03(AAA)(1.5V)x2
Continuous measuring timeapprox. 170 hours (when R03 is used)
(NCV_LED, Backlight:off)
(Auto power save : Approx.10 minutes)
Dimension204(L) × 81(W) × 36(D)mm
WeightApprox. 230g (including batteries)
Accessories7066A (Test leads)
9079 (Carrying case)
R03(AAA)×2 Instruction manual

Accessories

Catalog & Document

Brand Kyoritsu
