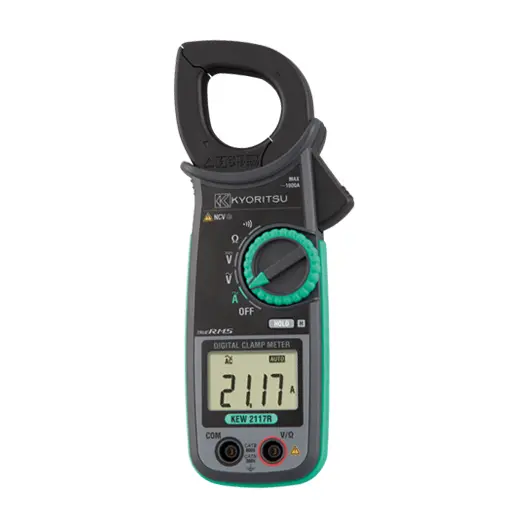

Kyoritsu 2117R Digital AC Clamp Meter with True RMS (jaw: 33mm dia.)
AC CLAMP METER
KEW 2117R
Fully Safety jaw
- Fully Safety jaw
- Ergonomic over-molded body gives convenient one-hand operation
- Large easy-to-read display with 0.01A resolution
- Accurate reading with True RMS 60/600/1000A auto-ranging
- Long battery life
- Safety Standard IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V
Specification
| AC A | 60.00/600.0/1000A (Auto-ranging) ±1.5%rdg±4dgt [45 to 65Hz] ±2.0%rdg±5dgt [40Hz to 1kHz] |
| AC V | 60.00/600.0V (Auto-ranging) ±1.0%rdg±2dgt [45 to 65Hz] (600V) ±1.5%rdg±4dgt [40Hz to 1kHz] (60/600V) |
| DC V | 60.00/600.0V (Auto-ranging) ±1.0%rdg±3dgt (60V) ±1.2%rdg±3dgt (600V) |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging) ±1.0%rdg±5dgt (600Ω) ±2.0%rdg±3dgt (6/60/600kΩ) |
| Continuity buzzer | 600Ω(Buzzer sounds below 90Ω) |
| Conductor size | φ33mm max. |
| Applicable standards | IEC 61010-1 CAT IV 300V / CAT III 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP 40, EN50581(RoHS) |
| Power source | R03/LR03 (AAA) (1.5V) × 2 |
| Continuous measuring time | Approx.170 hours (When R3 is used)(NCV_LED:off) (Auto power save : Approx. 10 minutes) |
| Dimension | 204(L) × 81(W) × 36(D)mm |
| Weight | Approx. 220g (including batteries) |
| Accessories | 7066A (Test leads) 9079 (Carrying case) R03 (AAA) × 2, Instruction Manual |
Accessories
Catalog & Document
- Product Catalog
- Instruction Manual
- KEW 2117R Instruction Manual (English)（1.29 MB）
- KEW 2117R Instruction Manual (Arabic)（1.38 MB）
- KEW 2117R Instruction Manual (French)（1.43 MB）
- KEW 2117R Instruction Manual (Indonesian)（1.40 MB）
- KEW 2117R Instruction Manual (Spanish)（1.39 MB）
- KEW 2117R Instruction Manual (Thai)（1.11 MB）
- KEW 2117R Instruction Manual (Vietnamese)（1.11 MB）
| Brand | Kyoritsu |
