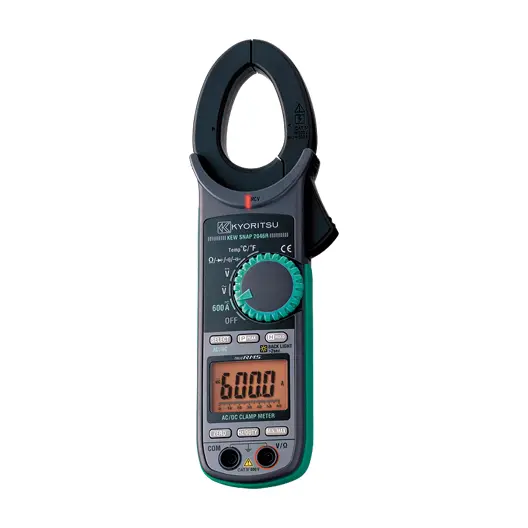

Kyoritsu 2046R Digital AC/DC Clamp Meter with True RMS (jaw: 33mm dia.) CAT IV

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

AC/DC CLAMP METER

KEW 2046R

Very useful for power distribution companies, power utilities and maintenance fields

Very useful for power distribution companies, power utilities and maintenance fields
Red LED, as “Non Contact Voltage” function, gives warning to the user on the presence of AC voltage
Double molding gives comfortable feeling in palm
6039 counts with Bar Graph display
Minimum resolution 0.1A

AC A	0 to 600.0A ±2.0%rdg±5dgt (50/60Hz) ±3.5%rdg±5dgt (40 to 500Hz)
DC A	0 to 600.0A ±1.5%rdg±5dgt
AC V	6/60/600V(Auto-ranging) ±1.5%rdg±4dgt (50/60Hz) ±3.5%rdg±5dgt (40 to 400Hz)
DC V	600mV/6/60/600V(Auto-ranging) ±1.0%rdg±3dgt
Ω	600Ω/6/60/600kΩ/6/60MΩ(Auto-ranging) ±1%rdg±5dgt (600 to 6M) ±5%rdg±8dgt (60M)
Continuity buzzer	Buzzer Sounds at 100Ω
Capacitance test	400nF/4/40μF(Auto-ranging)
Temperature	-50ºC to +300ºC (With the use of Temperature probe 8216)
Frequency	10/100Hz/1/10kHz(Auto-ranging)
DUTY	0.1 to 99.9%
Conductor size	Ø33mm
Safety Standard	IEC 61010-1 CAT IV 600V, IEC 61010-031 IEC 61010-2-032, IEC 61326
Power source	R03 (1.5V) (AAA) × 2
Dimension	243(L) × 77(W) × 36(D)mm
Weight	Approx. 300g
Accessories	7066A (Test leads) 9094 (Carrying case) Instruction Manual
Optional Accessories	8216 (Temperature probe)
