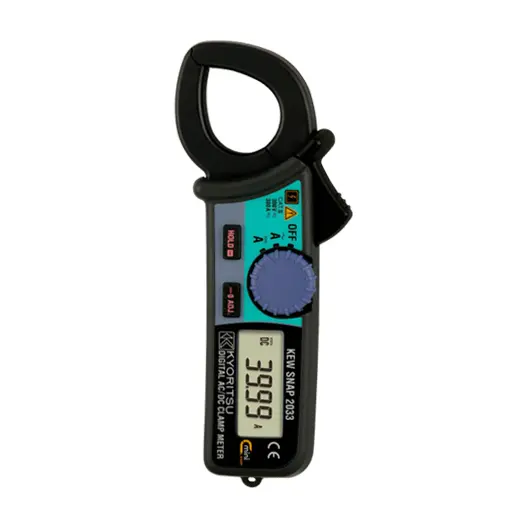

Kyoritsu 2033 Digital AC/DC Clamp Meter (jaw: 24mm dia.)

Price:

$ 321.00

Kyoritsu 2033 Digital AC/DC Clamp Meter (jaw: 24mm dia.)
  2. Shop
  3. Kyoritsu 2033 Digital AC/DC Clamp Meter (jaw: 24mm dia.)
Kyoritsu 2031 Digital AC Clamp Meter (jaw: 24mm dia.)
Kyoritsu 2031 Digital AC Clamp Meter (jaw: 24mm dia.)
$ 125.00
$ 125.00
Kyoritsu 2046R Digital AC/DC Clamp Meter with True RMS (jaw: 33mm dia.) CAT IV
Kyoritsu 2046R Digital AC/DC Clamp Meter with True RMS (jaw: 33mm dia.) CAT IV
$ 364.00
$ 364.00

Kyoritsu 2033 Digital AC/DC Clamp Meter (jaw: 24mm dia.)

https://www.etisupply.com/web/image/product.template/1058265/image_1920?unique=b43e63a

$ 321.00 321.0 USD $ 321.00

Not Available For Sale

($ 321.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

AC/DC CLAMP METER

MODEL 2033

Smallest clamp meter capable of AC and DC current measurements

  •  Smallest clamp meter capable of AC and DC current measurements
  •  300A auto-ranging has minimum resolution of 0.01A AC/DC
  •  Zero adjustment of DC current is possible at the push of a button

Specification

AC A40/300A
±1%rdg±4dgt [50/60Hz] (0 to 40A)
±2.5%rdg±4dgt [20Hz to 1kHz] (0 to 40A)
±1.5%rdg±4dgt [50/60Hz] (20 to 200A)
±2.5%rdg±4dgt [20Hz to 1kHz] (20 to 200A)
±3.5%rdg [50/60Hz] (200 to 300A)
±4%rdg [20Hz to 1kHz] (200 to 300A)
DC A40/300A
±1%rdg±4dgt (0 to ±40A)
±1.5%rdg±4dgt (±20 to ±200A)
±3%rdg (±200 to ±300A)
Conductor sizeØ24mm max.
Frequency responseDC, 20Hz to 1kHz
Safety StandardIEC 61010-1 CAT III 300V IEC 61010-2-032
Power sourceLR44 (1.5V) × 2
Dimension147(L) × 59(W) × 25(D)mm
WeightApprox. 100g
Accessories9090 (Carrying Case)
LR44 × 2 Instruction Manual
