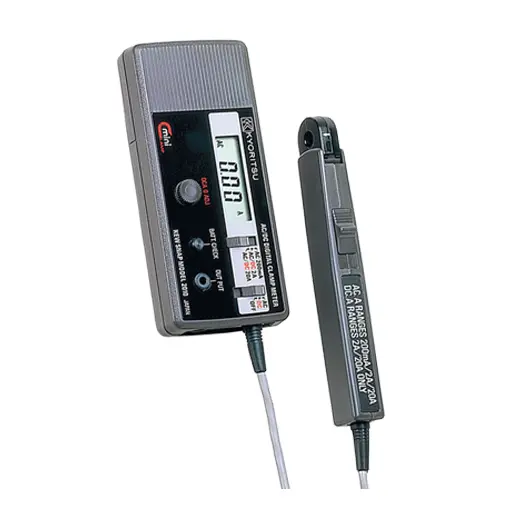

Kyoritsu 2010 Digital AC/DC Clamp Meter (jaw: 7.5mm dia.)

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

AC/DC CLAMP METER

MODEL 2010

High sensitivity, miniature AC/DC clamp meter

High sensitivity, miniature AC/DC clamp meter
0.1mA minimum resolution for AC current and 1mA minimum resolution for DC current
Output terminal for recorder connection

Never make current measurement on a circuit above 60V AC/DC

as the instrument is designed for use on low voltage circuits only.

AC A	200mA/2/20A ±1%rdg±2dgt [50/60Hz] (200mA) ±1.5%rdg±8dgt [40Hz to 2kHz] (200mA) ±1%rdg±2dgt [50/60Hz] (2A) ±2.5%rdg±10dgt [40Hz to 2kHz] (2/20A)
DC A	2/20A ±1%rdg±2dgt (2A) ±1.5%rdg±4dgt (20A)
Conductor size	Ø7.5mm max.
Frequency response	DC, 40Hz to 2kHz
Output	Recorder : DC200mV against AC200mA/2/20A DC200mV against DC2/20A
Power source	6LR61(9V) × 1 or AC Adapter
Dimension	142(L) × 64(W) × 26(D)mm 153(L) × 23(W) × 18(D)mm Clamp Sensor
Weight	Approx. 220g
Accessories	9095 (Carrying Case) 6LF22 × 1 Instruction Manual
Optional Accessories	7256 (Output cord)
