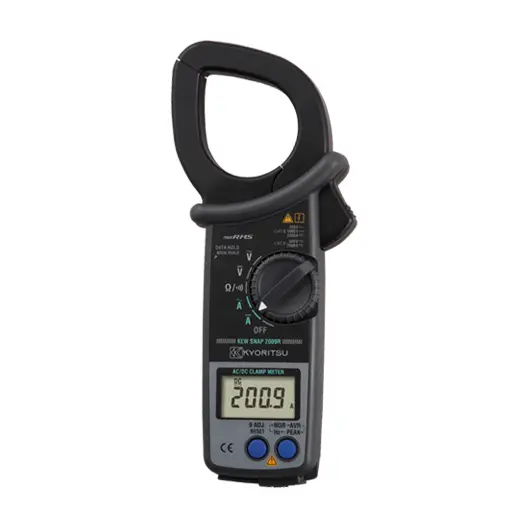

Kyoritsu 2009R Digital AC/DC Clamp Meter with True RMS (jaw: 55mm dia.) CAT IV

This combination does not exist.

Add to Cart

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

AC/DC CLAMP METER

KEW 2009R

True RMS reading instrument ideal for accurate measurement of distorted waveforms and non-sinusoidal waveforms arising from thyristors

True RMS reading instrument ideal for accurate measurement of distorted waveforms and non-sinusoidal waveforms arising from thyristors
Can measure AC and DC currents up to 2000A
Output terminal for recorder connection
Minimum resolution 0.1A

AC A	400.0/2000A ±1.3%rdg±3dgt (0 to 400.0A, 150 to 1700A) [45 to 66Hz] ±2.0%rdg±5dgt (0 to 400.0A, 150 to 1700A) [20Hz to 1kHz] ±2.3%rdg±3dgt (1701 to 2000A) [45 to 66Hz]
DC A	400.0/2000A ±1.3%rdg±2dgt
AC V	40.00/400.0/750V ±1.0%rdg±3dgt [45 to 66Hz] ±1.5%rdg±5dgt [20Hz to 1kHz]
DC V	40.00/400.0/1000V ±1.0%rdg±2dgt
Ω	400.0/4000Ω ±1.5%rdg±2dgt (Electronic protection (no fuse) up to 600V)
Continuity buzzer	Buzzer sounds below 20±1Ω
Hz	10.0 to 4000Hz±1.5%rdg±5dgt (Input sensitivityCurrent: more than 40AVoltage: more than 10V)
Conductor size	φ55mm max.
Output	Recorder : DC400mV against AC/DC400.0A DC200mV against AC/DC2000A
Applicable standards	IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-2-2
Power source	R6 (1.5V) × 2
Dimension	250(L) × 105(W) × 49(D)mm
Weight	Approx. 540g (including batteries)
Accessories	7107A (Test leads) 9094 (Carrying case) R6 (AA) × 2, Instruction Manual
Optional Accessories	7256 (Output cord)

Brand

Kyoritsu
