Gedore 14x18 Torque Wrench TF-SE300 TORCOFIX SE 60-300 Nm / 45-220 ft-lb (3278557)

Price:

$ 330.01

Gedore 14x18 Torque Wrench TF-SE300 TORCOFIX SE 60-300 Nm / 45-220 ft-lb (3278557)
  2. Shop
  3. Gedore 14x18 Torque Wrench TF-SE300 TORCOFIX SE 60-300 Nm / 45-220 ft-lb (3278557)
Gedore 14x18 Torque Wrench TF-SE200 TORCOFIX SE 40-200 Nm / 30-150 ft-lb (3278549)
Gedore 14x18 Torque Wrench TF-SE200 TORCOFIX SE 40-200 Nm / 30-150 ft-lb (3278549)
$ 296.85
$ 296.85
Gedore 14x18 Torque Wrench TF-SE400 TORCOFIX SE 80-400 Nm / 60-300 ft-lb (3278565)
Gedore 14x18 Torque Wrench TF-SE400 TORCOFIX SE 80-400 Nm / 60-300 ft-lb (3278565)
$ 495.88
$ 495.88

Gedore 14x18 Torque Wrench TF-SE300 TORCOFIX SE 60-300 Nm / 45-220 ft-lb (3278557)

https://www.etisupply.com/web/image/product.template/1037986/image_1920?unique=939c97e

Code no. 3278557

$ 330.01 330.01 USD $ 330.01 $ 366.68

Not Available For Sale

($ 330.01 / Units)
  • Brand

This combination does not exist.

14x18 Insert Tool 45-220 ft-lb 60-300 Nm Gedore Tools
Contact Us
Gedore Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

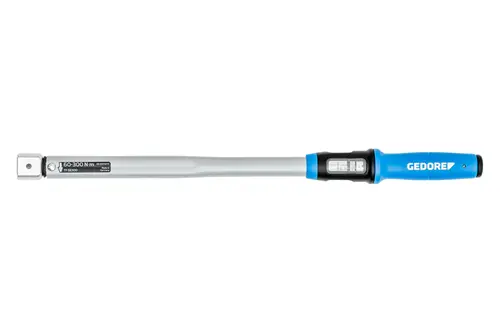

Torque wrench TORCOFIX SE 14x18 60-300 Nm / 45-220 ft-lb

TF-SE300

Code no.: 3278557 EAN: 4010886962411

Product description

  • Use: Controlled screw tightening in the range of 60-300 Nm / 45-220 lbf·ft
  • Type: Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades

Features

  • Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/- 3% deviation and thus with greater precision than the standard-stipulated +/- 4%
  • Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
  • For controlled right- and left-hand tightening (insert tool for change of direction)
  • Rectangular mount 14x18 mm including ejection aid
  • Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts
  • New ergonomic handle, shaped according to the natural grip position of the hand
  • Clearly recognisable and tactile hand-centring aid and calibration aid in the middle of the handle
  • Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
  • With vernier scale for Nm main scale for setting intermediate scale values; lbf·ft setting only via main scale
  • Vertical alignment of the scale; torque adjustment therefore suitable for left- and right-handers
  • Incl. roll-away protection, prevents rolling away when the tool is put down

Dimensions and weights

  • Total width: 44 mm
  • Total height: 44 mm
  • Total length: 570 mm
  • Weight: 1.19 kg

Scope of delivery

  • Storage/Content: Plastic box
  • Contents (Qty of pieces): 1

Technical characteristics

  • Drive type/drive: Rectangular cavity
  • Drive connector rectangular: 14 x 18 mm
  • Tightening direction: Left and right
  • Trigger mechanism: Short path triggering
  • Torque (max.): 220 lbf·ft / 300 Nm
  • Torque (min.): 45 lbf·ft / 60 Nm
  • Torque wrench function: Triggering
  • Material: Tubular steel construction with high-quality plastic parts
  • Precision: +/- 3%
  • Test certificate: DIN EN ISO 6789-2:2017
  • Scale division: 10 Nm

Note: Technical changes and errors reserved.
