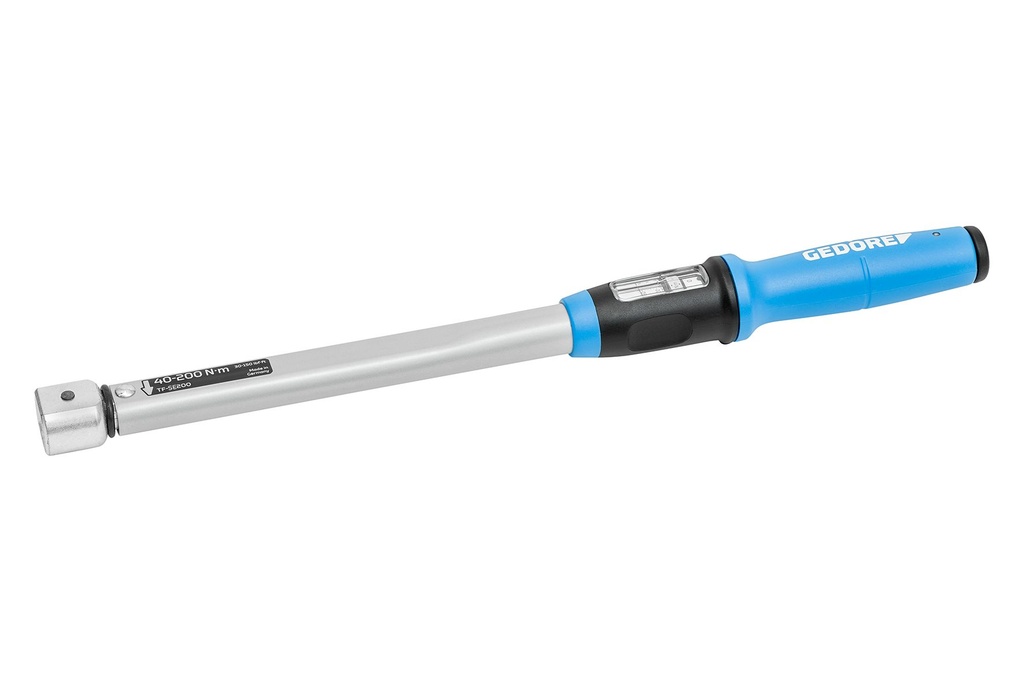

Torque wrench TORCOFIX SE 14x18 40-200 Nm / 30-150 ft-lb

TF-SE200

Code no.: 3278549 EAN: 4010886962404

Product description

  • Use: Controlled screw tightening in the range of 40-200 Nm / 30-150 lbf·ft
  • Type: Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades

Features

  • Classified according to DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/- 3% deviation and thus with greater precision than the standard-stipulated +/- 4%
  • Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
  • For controlled right- and left-hand tightening (insert tool for change of direction)
  • Rectangular mount 14x18 mm incl. ejector aid
  • Robust, matt powder-coated tubular steel construction with high-quality plastic parts
  • New ergonomic handle, shaped according to the natural grip position of the hand
  • Clearly recognisable and tactile hand-centring aid and calibration aid in the middle of the handle
  • Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
  • With vernier scale for Nm main scale for setting intermediate scale values
  • Vertical alignment of the scale; torque adjustment therefore suitable for left- and right-handers
  • Incl. roll-away protection

Dimensions and weights

  • Total width: 44 mm
  • Total height: 44 mm
  • Total length: 479 mm
  • Weight: 1.01 kg

Scope of delivery

  • Storage/Content: Plastic box
  • Contents (Qty of pieces): 1

Technical characteristics

  • Drive type/drive: Rectangular cavity
  • Drive connector rectangular: 14 x 18 mm
  • Tightening direction: Left and right
  • Trigger mechanism: Short path triggering
  • Torque (max.): 150 lbf·ft / 200 Nm
  • Torque (min.): 30 lbf·ft / 40 Nm
  • Torque wrench function: Triggering
  • Material: Tubular steel construction with high-quality plastic parts
  • Precision: +/- 3%
  • Test certificate: DIN EN ISO 6789-2:2017
  • Scale division: 1 Nm
  • Vernier: 0.1 Nm

Note: Technical changes and errors reserved.
