Fieldpiece Job Link® Charge and Air Kit (Case+2xJL3PR+2xJL3PC +2xJL3RH)
SKU: JL3KH6
- Set Includes: Pipe Temp Probes: 2 | Pressure Probes: 2 | Psychrometer Probes: 2 | Case: Padded | Batteries: 12 AAA
JL3KH6 – Job Link® System Charge and Air Kit
Details
Quick service checks just got faster.
Wireless range of 1,000’.
Directly connects to mobile device with Job Link System App Fast accurate temps with new Rapid Rail® technology Pressures auto calibrate at any elevation Configurable psychrometers with flexible probe and sliding magnet A2L Compatible

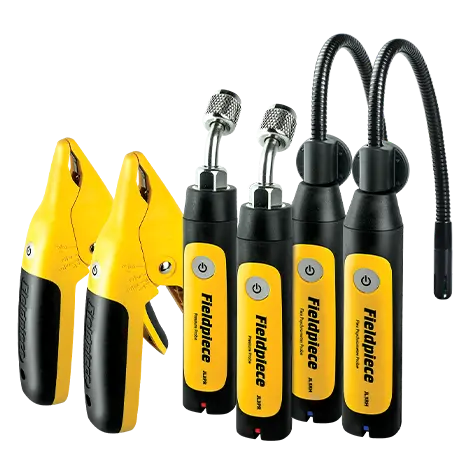

Take a full system snapshot quickly and easily with the JL3KH6 Charge and Air Test Kit. This kit consists of 2 pressure probes, 2 pipe clamps, and 2 psychrometers in a quick access padded case. All measurements can be sent up to 1000’ away directly to your mobile device with the Job Link® System mobile app. Each tool is designed for agility and speed. The pressure probes fit into tight spaces. The pipe clamps use the new Rapid Rail® sensor design delivering accuracy, speed, and agility, even on the most awkward pipe configurations. The psychrometers’ flexible narrow probes and configurable magnet make it easy to measure supply plenums, ducts, and elevated registers. Do more with Job Link probes!
Key Features
- Set Includes: Pipe Temp Probes: 2 | Pressure Probes: 2 | Psychrometer Probes: 2 | Case: Padded | Batteries: 12 AAA
Specifications
- Wireless Range: 1000 feet or more (305 meters)
- Wireless Frequency: 2.4 GHz
- Battery: 2x AAA (included)
- Battery Life: 150 hours typical alkaline
- Auto Power Off (APO): 2 hours (can be disabled)
- Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or Android™ 5.0
- JL3PR — Connector Type: 45° Standard 1/4” NPT female flare
- JL3PR — Best Accuracy: ±1 psig (±7 kPa)
- JL3PR — Measurement Range: 0 to 580 psig (0 to 4000 kPa)
- JL3PR — Maximum Overload: 800 psig (5500 kPa)
- JL3PC — Pipe Compatibility: Electrically conductive 1/4” to 1 3/8” (6.4mm to 34.9mm) dia.
- JL3PC — Accuracy: ±1°F (±0.6°C)
- JL3PC — Measurement Range: -50°F to 257°F (-46°C to 125°C)
- JL3PC — Stabilization Time: Three seconds typical
- JL3PC — Measurement Feedback: Beeper and LED
- JL3PC — Water Resistant: IP54 Rated
- JL3PC — Patent: 10,365,165
- JL3RH — Flexible Probe: 0.36” (9mm) diameter, 9.25” (235mm) length
- JL3RH — Best Accuracy: ±1°F (±0.6°C) ±2.5 %RH
- JL3RH — Measurement Range: -40°F to 250°F (-40°C to 121°C) 0 %RH to 100 %RH
Set Replacement Items
| SKU | Title | Size / OAL |
|---|---|---|
| — | 2 Job Link Pipe Temp Probes | — |
| — | 2 Job Link Pressure Probes | — |
| — | 2 Job Link Psychrometer Probes | — |
| — | Padded Carrying Case | — |
| — | 2 x AAA Batteries Per Probe (12 Total) | — |
Warnings
- Hand turn the female fitting to connect and disconnect. DO NOT use the plastic body to increase leverage. Doing so can cause damage, leaks, and void warranty.
- Do not apply more than 800 psig.
- The entire JL3PC may become hot when testing hot pipes or cylinders. Use caution handling.
- Prevent damage, do not drill holes blindly into a plenum that houses the evaporator or heat exchanger.
| Brand | Fieldpiece |
