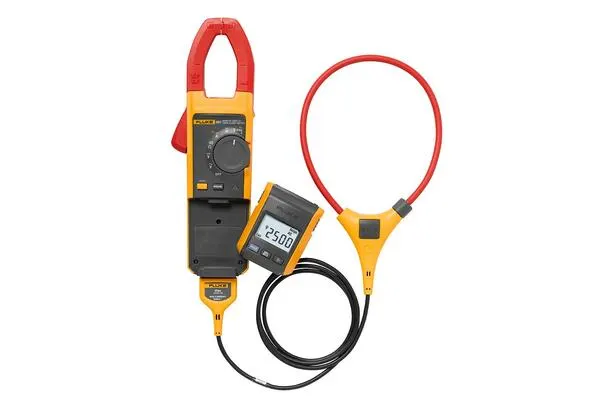

Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex®

What once took two people, now takes one

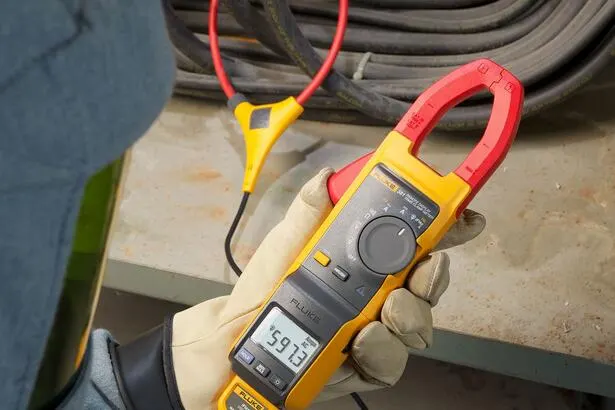

Now one technician can do jobs that would otherwise require two people. Clamp the Fluke 381 around a conductor, remove the display and walk across the room to operate controls or remove protective equipment, all while watching real-time readings.

The iFlex® Flexible Current Probe (included) expands the measurement range to 2500 A AC while providing increased display flexibility. With a cord that runs 6 feet, you can finally measure those tight spaces, awkward sized conductors and disorganized wires.

Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings

Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it

Ergonomic design fits in your hand and can be used while wearing protective equipment

Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement

Three-year warranty

Safety Conformance : IEC/EN 61010-1:2001, 1000V CAT III, 600V CAT IV

Features

• Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement with measurement accuracy
• Removable magnetic display can be mounted where it is easily seen
• iFlex® Flexible Current Probe expands the measurement range to 2500 A AC
• CAT IV 600 V, CAT III 1000 V

Specifications

• Model: Fluke 381
• Part #: 5065875
• UPC: 0 95969 53748 3
• AC current via jaw: 999.9 A; 2% ±5 digits (10-100 Hz), 5% ±5 digits (100-500 Hz)
• AC current via flexible probe: 999.9 A / 2500 A (45 Hz to 500 Hz); 3% ±5 digits
• DC current: 999.9 A; 2% ±5 digits
• AC voltage: 600 V / 1000 V; 1.5% ±5 digits (20-500 Hz)
• DC voltage: 600.0 V / 1000 V; 1% ±5 digits
• Frequency via jaw: 5.0 to 500.0 Hz; 0.5% ±5 digits
• Resistance: 600 Ω / 6 kΩ / 60 kΩ; 1% ±5 digits
• Size (L x W x H): 277 x 88 x 43 mm (55 mm for remote unit)
• Weight: 350 g (0.77 lb)
• Jaw opening: 34 mm
• Flexible current probe diameter: 7.5 mm
• Flexible current probe cable length: 1.8 m
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +60°C
• Operating altitude: 2,000 meters
• Storage altitude: 12,000 meters
• Wireless: 2.4 GHz ISM band, 10 meter range
• Safety compliance: IEC/EN 61010-1:2001 to 1000 V CAT III, 600 V CAT IV
• Warranty: 3 years
