Fluke FLUKE- 325 400A AC/DC TRUE RMS CLAMP METER W/TEMP (AMERICAS & EMEA)

Details

Troubleshoot problems safely and accurately

The Fluke 325 True-rms Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures:

• DC current
• DC voltage
• Temperature
• Frequency

You’ll carry fewer tools in your bag and get more work done.

Covers most problems you see day-in, day-out

The 325 gives you a strong combination of measurement functions, in a tool that is reliable, easy-to-use and affordable. This clamp meter offers True-rms AC voltage and current measurements on non-linear signals. Paired with the CAT III 600 V, CAT IV 300 V safety rating the clamp meter can also measure:

• Measures AC/DC current up to 400 A through jaw
• AC/DC voltage to 600 V using test leads
• Measures frequency from 5 Hz to 500 Hz; resistance to 40 kΩ
• Measures temperature from -10 °C to 400 °C with included K-type thermocouple
• Min/Max function records important values

Comes with a two-year warranty

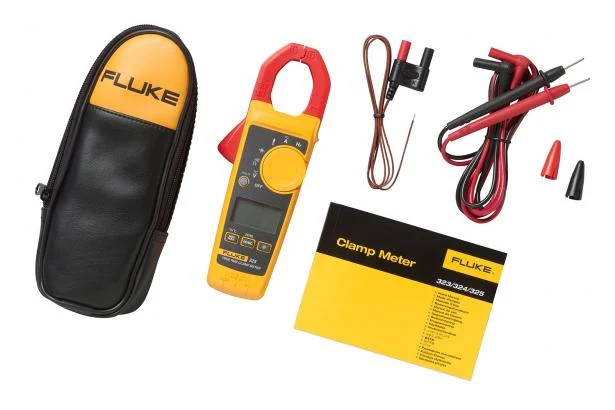

What's in the box:

• Fluke 325 True-RMS Clamp Meter
• TL75 Test Leads
• Type K Thermocouple
• Two AAA Batteries (Installed)
• Soft Case

Key Features

• True-rms AC/DC current, voltage, temperature, frequency
• Clamp meter, test leads, K-type thermocouple and soft case
• Versatile tool performs most front-line measurement tasks

Specifications

• AC current - Range: 40.00 A / 400.0 A
• AC current - Accuracy: 2% ± 5 digits (45 Hz to 65 Hz); 2.5% ± 5 digits (65 Hz to 400 Hz)
• DC current - Range: 40.00 A / 400.0 A
• DC current - Accuracy: 2% ± 5 digits
• AC voltage - Range: 600.0 V
• AC voltage - Accuracy: 1.5% ± 5 digits
• DC voltage - Range: 600.0 V
• DC voltage - Accuracy: 1.0% ± 5 digits
• Resistance - Range: 400.0 Ω / 4000 Ω / 40.00 kΩ
• Resistance - Accuracy: 1.0% ± 5 digits
• Continuity: ≤ 30 Ω
• Capacitance: 0 to 100.0 μF / 100μF to 1000 μF
• Frequency: 5.0 Hz to 500.0 Hz
• AC response: True-RMS
• Backlight: Yes
• Data hold: Yes
• Contact temperature: -10.0°C to 400.0°C (14.0°F to 752.0°F)
• Min/Max: Yes
• Size - H x W x D (mm): 207 x 75 x 34
• Size - Max wire diameter: 30 mm (600 MCM)
• Size - Weight: 283 g
• Category rating: CAT III 600 V; CAT IV 300 V
• Warranty: Two-year
